| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| Current Rating (Maximum @ I rms) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Q Factor (Typical @ 2.52 MHz) | |
| Saturation Current (Typical @ Isat) | |
| Self Resonant Frequency (Minimum) | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width | |
| dcr (Maximum) |

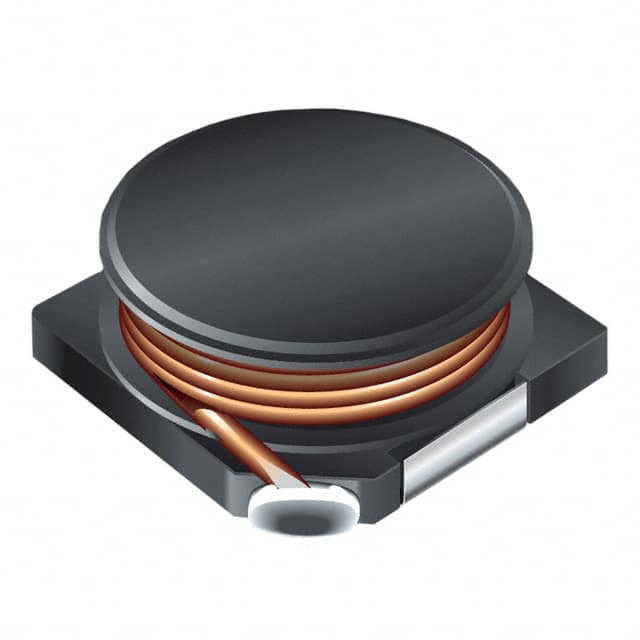

The Bourns SDR7030-100M is a surface-mount power inductor from the SDR7030 series, designed for applications requiring stable inductance and current handling. It offers a nominal inductance of 10µH with a tolerance of ±20% and a rated current of 1.5A.
This inductor features a DC resistance (DCR) of 75mΩ maximum and a saturation current of 1.6A typical. The operating temperature range is -40°C to +125°C, making it suitable for various environmental conditions. The component utilizes a wirewound drum core made of ferrite material, providing reliable performance.
Packaged on tape and reel for automated assembly, the SDR7030-100M has dimensions of 7.00mm x 7.00mm with a height of 3.30mm. Its unshielded design and surface mount type are compatible with standard PCB manufacturing processes.
Key electrical characteristics include a Q factor of 16 at 2.52MHz and a self-resonant frequency of 35MHz. These specifications make it suitable for input/output filtering in DC/DC converters and power supplies for portable communication equipment, camcorders, and LCD TVs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 10µH.
The rated current is 1.5A.
The maximum DC resistance is 75mΩ.
The self-resonant frequency is 35MHz.
It uses a surface mount package.
The dimensions are 7.00mm x 7.00mm with a height of 3.30mm.
