| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
480 pcs
|
480 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

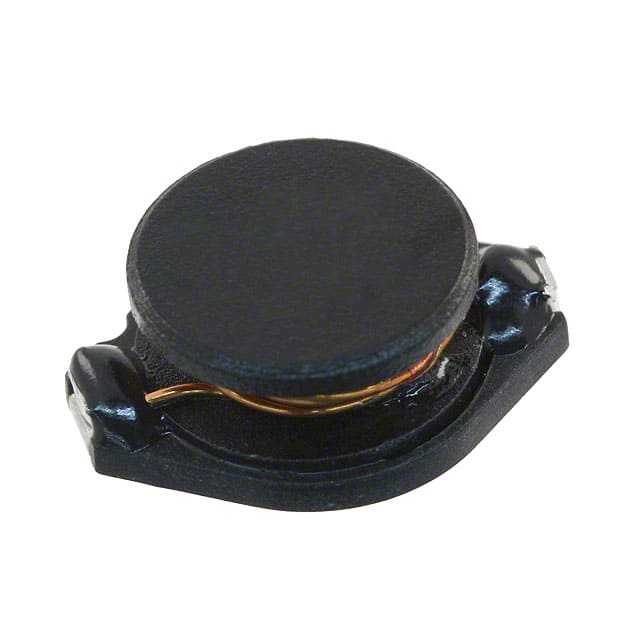

The Bourns SDR1806-101KL is a surface mountable SMD power inductor from the SDR1806 series. It offers an inductance value of 100µH with a tolerance of ±10% and a rated current of 1.7A. The inductor has a low DC resistance of 190mΩ maximum and a Q factor of 25 at 796kHz. Its self-resonant frequency is 7MHz.
Designed for applications such as the input/output of DC/DC converters and power supplies for portable communications equipment, camcorders, and LCD TVs, this unshielded inductor has a drum core and wirewound construction. It measures 18.30mm in length and 14.00mm in width, with a height of 6.90mm. The operating temperature range is -40°C to +125°C.
The SDR1806-101KL is supplied in tape and reel packaging, with 250 pieces per reel. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 100µH at 100kHz with ±10% tolerance.
The continuous current rating is 1.7A, and the typical saturation current is 3.2A.
The maximum DC resistance is 190mΩ.
The typical self-resonant frequency is 7MHz.
The inductor is surface mount in a nonstandard package measuring 18.30mm x 14.00mm with a height of 6.90mm.
The operating temperature range is -40°C to 125°C.
