| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
386 pcs
|
386 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

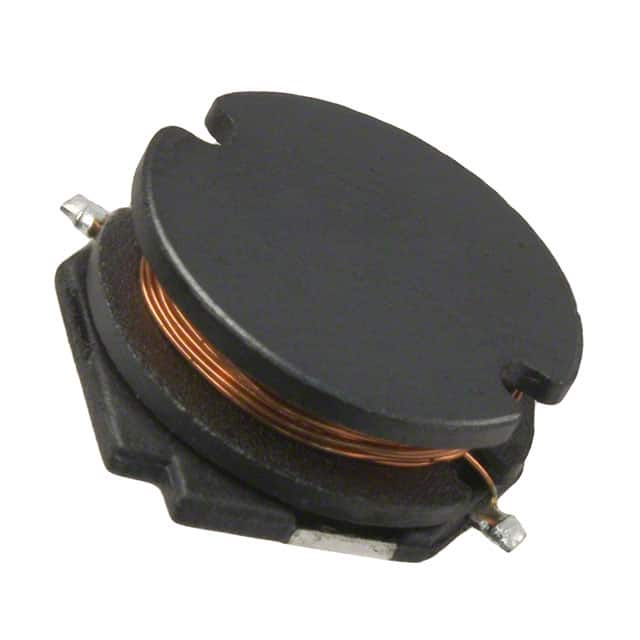

The Bourns SDR1305-102K is an unshielded, wirewound drum core inductor designed for surface mount applications. It offers an inductance value of 1 mH with a tolerance of ±10% and a DC resistance (DCR) of 2.35 Ohms maximum.
This inductor is rated for a continuous current of 460 mA and has a saturation current of 470 mA. The operating temperature range is -40°C to +125°C. Its dimensions are 12.70mm x 12.70mm with a height of 5.10mm.
Applications for this series include input/output of DC/DC converters and power supplies for portable communication equipment, camcorders, and LCD TVs. The SDR1305 series is available in E6 values and features a current rating up to 7.2 amps.
This component is supplied in tape and reel packaging, with 600 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1mH (nominal at 100kHz).
460mA maximum.
2.35 Ohms maximum.
2.7MHz minimum.
Nonstandard surface mount package, dimensions 12.70mm x 12.70mm x 5.10mm.
-40°C to +125°C.
No, it is unshielded.
