| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,400 pcs
|
2400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Base Material | |
| Case Height | |
| Case Length | |
| Case Width | |
| Core Type | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| Resistance to Soldering Heat | |
| SVHC Present | |
| Shielding | |
| Standard Package Quantity | |
| Storage Temperature | |
| Tape & Reel | |
| Terminal Material | |
| Test Frequency | |
| Test Voltage | |
| Tolerance | |
| Type | |
| Width | |
| Wire Material |

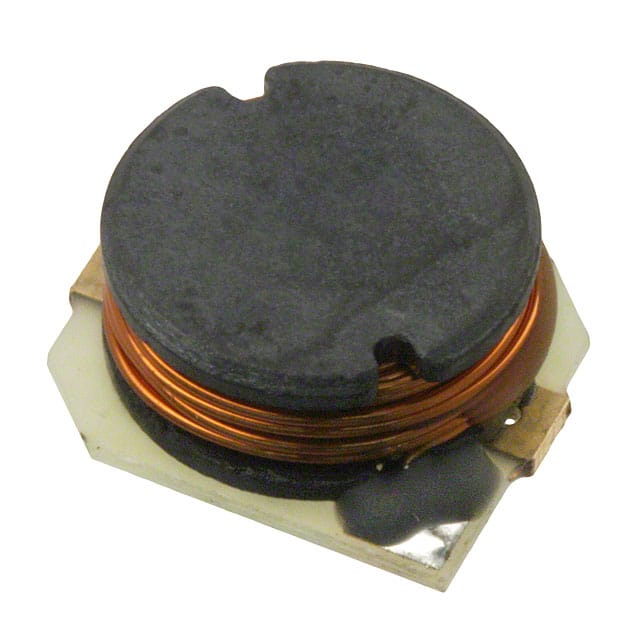

The Bourns SDR1105-330KL is a surface-mount fixed inductor from the SDR1105 series, designed for DC/DC converter input/output and power supply applications. It offers an inductance value of 33µH with a tight tolerance of ±10% and a maximum DC resistance of 0.100 Ω.
This inductor boasts a high RMS current rating of 4.0A and a saturation current rating of 2.6A, ensuring reliable performance under load. The operating temperature range is -40°C to +125°C, making it suitable for various environmental conditions. Its low profile, with a height of only 4.8mm, is ideal for space-constrained designs.
The SDR1105-330KL utilizes a ferrite DR core and enameled copper wire, housed in an FR-4 base with Cu/Ni/Au terminals. It is supplied on an 800-piece reel, suitable for automated assembly processes. This component is RoHS 3 compliant and meets MSL Level 1 requirements.
Key applications include power supplies for portable communications equipment, camcorders, and LCD TVs. Its robust construction and electrical characteristics make it a reliable choice for demanding electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the SDR1105-330KL is 33µH.
The SDR1105-330KL has a saturation current rating of 2.6A and an RMS current rating of 4.0A.
The maximum DC resistance for the SDR1105-330KL is 0.100 Ω.
The operating temperature range for this inductor is -40°C to +125°C.
The SDR1105-330KL uses a surface mount package.
The SDR1105-330KL is supplied on an 800-piece reel.
