| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Material | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

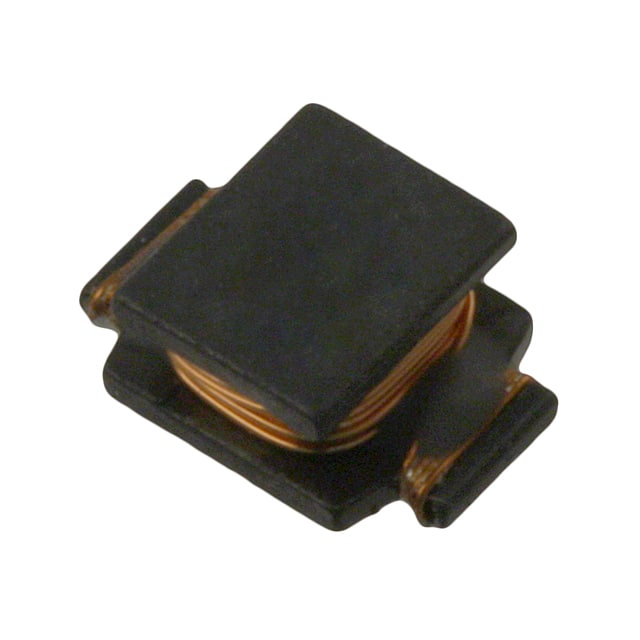

The Bourns SDR0703-120KL is a high-performance SMD power inductor from the SDR0703 series. It features a compact drum core, wirewound construction, and a ferrite core material, making it suitable for space-constrained applications.
This inductor provides an inductance of 12µH with a tight tolerance of ±10% and a Q factor of 20 at 2.52MHz. It is rated for a continuous current of 900mA and has a saturation current of 1.3A. The DC resistance is a maximum of 180mΩ. The operating temperature range is -40°C to 125°C.
Designed for surface mounting, the SDR0703-120KL has a low profile with a height of only 2.7mm. Its dimensions are 6.50mm in length and 4.50mm in width. The unshielded design is suitable for input/output of DC/DC converters and power supplies for portable communications equipment, camcorders, and LCD TVs.
This component is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 12µH.
The RMS current rating is 900mA, and the saturation current is 1.3A.
The maximum DC resistance is 180mΩ.
The operating temperature range is -40°C to 125°C.
The dimensions are 6.50mm in length, 4.50mm in width, and 2.70mm in height.
It features a drum core, wirewound construction with a ferrite core.
No, this inductor is unshielded.
