| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
56,000 pcs
|
56000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,310 pcs
|
1310 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Material | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| SVHC Present | |
| Shielding | |
| Storage Temperature | |
| Tolerance | |
| Type | |
| Width |

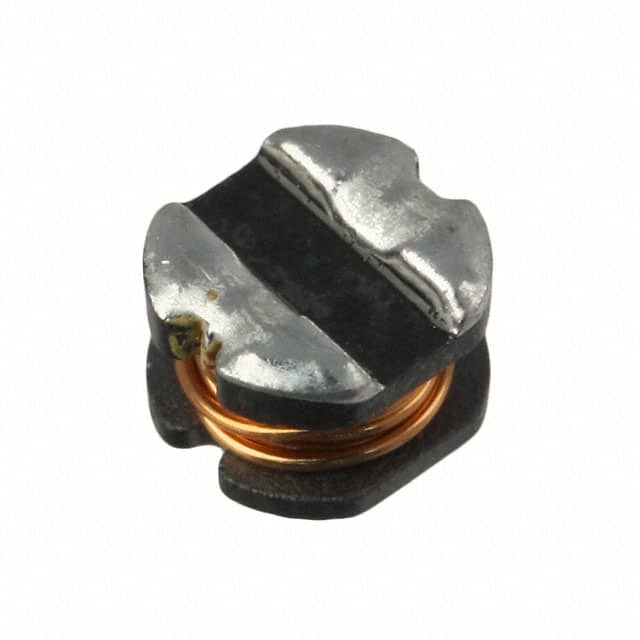

The Bourns SDR0403-100ML is a surface-mount SMD power inductor from the SDR0403 series. It offers an inductance value of 10µH with a tolerance of ±20% and a rated current of 1.15A (RMS) or 1.7A (saturation).
This inductor features a low profile of 3.2mm and a ferrite core, making it suitable for applications such as the input/output of DC/DC converters and power supplies for portable communications equipment, camcorders, and LCD TVs. The operating temperature range is -40°C to +125°C.
With dimensions of 4.50mm x 4.00mm and a height of 3.50mm, the SDR0403-100ML is designed for efficient board space utilization. It is constructed with an enameled copper wire and Ag/Ni/Sn terminals.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 10µH.
The current rating is 1.15A RMS or 1.7A at saturation.
The maximum DC resistance is 180mΩ.
The minimum self-resonant frequency is 33MHz.
The dimensions are 4.50mm in length, 4.00mm in width, and 3.50mm in height.
The operating temperature range is -40°C to +125°C.
It is packaged in reels of 2000 pieces.
