| Category | |
| Manufacturer Name | |
| AC Voltage | |
| Applications | |
| Approval Agency | |
| Current | |
| DC Voltage | |
| Efficiency | |
| Features | |
| Height | |
| Input Type | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

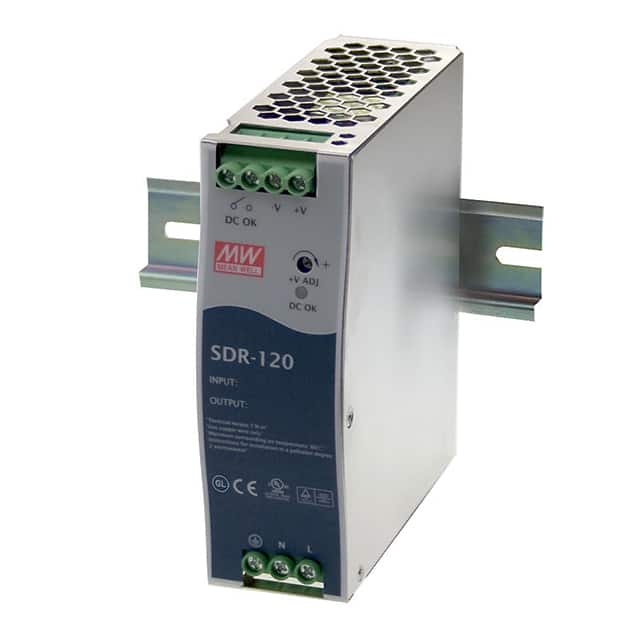

The Mean Well USA SDR-120-24 is an enclosed AC/DC DIN rail power supply designed for industrial and ITE applications. It provides a reliable 120W of power with a 24VDC output and a 5A current rating.
Key electrical specifications include a universal input voltage range of 88-264 VAC, high efficiency up to 91%, and adjustable output. The power supply is built to meet standard compliance requirements including 62368-1 and UL 508, with a dielectric strength of 3 kV.
Designed for easy integration, it mounts directly onto a standard 35mm DIN rail. The operating temperature range is -25°C to 70°C with derating. Its dimensions are 113.5mm in length, 40.0mm in width, and 125.2mm in height.
This power supply is suitable for various industrial, telecommunications, automation, control, military, and broadcast systems requiring stable and efficient power conversion.
The SDR-120-24 accepts a universal AC input from 88 to 264 VAC and also supports DC input.
The SDR-120-24 is designed for DIN Rail mounting and comes in an enclosed package.
The SDR-120-24 operates from -25°C to 70°C with derating.
The SDR-120-24 provides a 5A output at 24VDC.
The typical efficiency is 91%.
Yes, the SDR-120-24 features an adjustable output voltage.
The SDR-120-24 complies with UL 508 and IEC 62368-1.
