| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
199 pcs
|
199 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Applications | |
| Features | |
| Flow Measurement | |
| Interface | |
| Long Term Stability | |
| Maximum Pressure | |
| Mounting Type | |
| Operating Pressure | |
| Operating Temperature | |
| Output | |
| Output Type | |
| Port Size | |
| Port Style | |
| Pressure Range | |
| Pressure Type | |
| Repeatability | |
| Sensor Chip | |
| Sensor Technology | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Voltage | |
| Termination Style | |
| Voltage | |
| accuracy (@ near zero) |

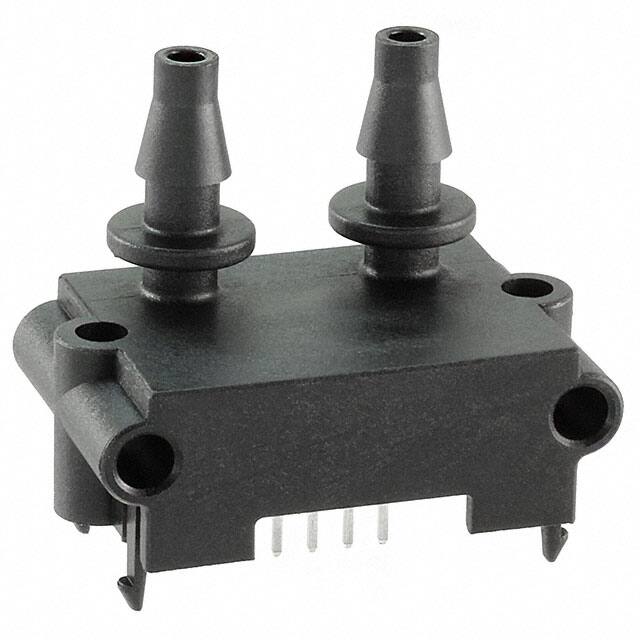

The Sensirion AG SDP610-500PA is a low-cost digital differential pressure sensor designed for high-volume applications. It measures air and non-aggressive gases with high accuracy and no offset drift, covering a pressure range of up to ±500 Pa. The sensor features a digital 2-wire I2C interface, making it easy to connect directly to a microprocessor. The signal is internally linearized and temperature compensated.
Based on Sensirion’s patented CMOSens® sensor technology, the SDP600 series combines the sensor element, signal processing, and digital calibration on a single microchip. This differential pressure sensor utilizes a thermal sensor element with flow-through technology, offering improved long-term stability and repeatability compared to membrane-based sensors. It operates from a 3.3V supply voltage and has an operating temperature range of -20°C to 80°C.
The SDP610-500PA is suitable for board mounting and comes in a 3-SIP package with a 0.2" barbed tube port style. Its applications span medical technology, HVAC, automotive, process automation, and burner control systems. The sensor provides a 16-bit output and has an accuracy of ±3% with an operating pressure of ±0.072 PSI (±0.5kPa).
This sensor is designed for demanding and cost-sensitive OEM applications, offering excellent performance and reliability. The digital output simplifies integration into various systems, while the temperature compensation ensures consistent measurements across its operating range.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating pressure range for the SDP610-500PA sensor is up to ±500 Pa.
The SDP610-500PA sensor provides a digital I2C output.
The SDP610-500PA sensor operates from a 3.3V supply voltage.
The operating temperature range of the SDP610-500PA sensor is -20°C to 80°C.
The SDP610-500PA sensor comes in a 3-SIP module package.
The SDP610-500PA sensor is mounted using a through-hole method.
The accuracy of the SDP610-500PA differential pressure sensor is ±3%.
