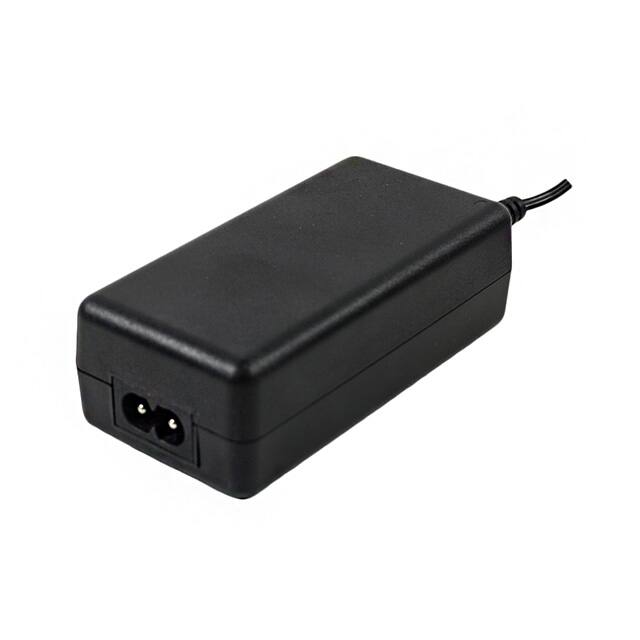

SDM36-12-UD-P5 The CUI Inc. SDM36-12-UD-P5 is a 36W AC/DC desktop adapter providing a 12V output. It features universal input voltage and meets DoE Level VI efficiency standards.
Mfr Part #:

SDM36-12-UD-P5

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. SDM36-12-UD-P5 is a 36W AC/DC desktop adapter providing a 12V output. It features universal input voltage and meets DoE Level VI efficiency standards.
Stock on Request

SDM36-12-UD-P5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Automotive Grade
Cord Length
Current
Efficiency
Form
Frequency
Height
Industrial Grade
Input Connector
Input Type
Length
Medical Grade
Military Grade
No Load Power Consumption
Operating Temperature
Output Connector
Output Current
Polarization
Power (Watts)
Standard Number
Storage Temperature
Voltage
Width
View Similar Products (0)

SDM36-12-UD-P5 Description

Short technical summary and product information.

The CUI Inc. SDM36-12-UD-P5 is a versatile AC/DC desktop power adapter from the SDM36-UD series, delivering up to 36W of continuous power with a 12V output voltage and a maximum current of 3A. This adapter is designed for universal input voltage ranging from 90 to 264 VAC and operates efficiently, meeting the DoE Level VI efficiency standard.



Key features include over-voltage and short-circuit protections, a compact size, and low no-load power consumption of less than 0.10W. The unit utilizes an IEC320/C8 input connector and offers a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 9.5mm). Its robust design is suitable for applications in ITE (Commercial) and Medical fields, with safety approvals including UL/cUL, TUV, and PSE.



The adapter operates within a temperature range of 0°C to 40°C and has dimensions of 99 x 50 x 33 mm, weighing approximately 210g without the AC cord. It is designed for reliable performance and safety compliance, making it a suitable choice for various electronic equipment requiring a stable DC power source.

SDM36-12-UD-P5 Quick Information

Product Type: AC/DC Desktop Adapter
Series: SDM36-UD
Canonical Name: CUI Inc. SDM36-UD Series AC-DC Power Supply
Subcategory: Desktop Adapter

SDM36-12-UD-P5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SDM36-12-UD-P5 Features

  • Delivers 36W continuous power with 12V output.
  • Meets DoE Level VI efficiency standards.
  • Universal input voltage range of 90-264 VAC.
  • Compact size with IEC320/C8 input connector.
  • Includes over-voltage and short-circuit protections.

SDM36-12-UD-P5 Applications

  • Suitable for ITE commercial equipment.
  • Designed for medical device applications.
  • Provides stable power for electronic systems.
  • Ideal for compact device integration.

SDM36-12-UD-P5 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the SDM36-12-UD-P5?

The adapter accepts a universal AC input of 90 to 264 VAC.

What is the output voltage and current?

The output is 12V DC with a maximum current of 3A, providing up to 36W.

What protections are included?

Over voltage protection (200% shutdown), over current protection (200% auto-recovery), and short circuit protection (auto-recovery).

What is the isolation voltage rating?

Isolation between input and output is 4000 Vac for 1 minute at 10 mA.

What is the operating temperature range?

The adapter operates from 0 to 40 °C with 20-80% non-condensing humidity.

What is the package type and form factor?

The adapter is a desktop (Class II) unit packaged in a box. Dimensions are 99 x 50 x 33 mm.

What is the MTBF rating?

MTBF is 300,000 hours per Telcordia SR-332 at 25°C.
