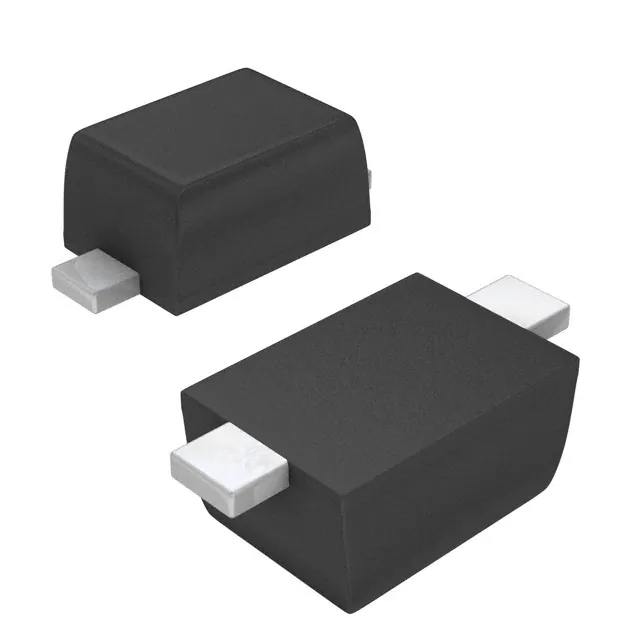

The Diodes Incorporated SDM20U40Q-7 is a surface mount Schottky Barrier Diode designed for applications requiring low forward voltage drop and fast switching speeds. It features a maximum reverse voltage of 40V and a continuous forward current rating of 250mA.
Key electrical characteristics include a low forward voltage drop of 0.6V at 200mA and a reverse leakage current of 5µA at 30V. The diode also offers a reverse recovery time of 10ns and a capacitance of 50pF at 0V and 1MHz.
This device is qualified to AEC-Q101 standards for high reliability and is suitable for use in Switch Mode Power Supplies (SMPS), DC-DC converters, freewheeling diodes, reverse polarity protection, and blocking diodes. The component is supplied in a SOD-523 package, facilitating compact PCB designs.
Environmental compliance includes RoHS3, REACH Unaffected, and it is described as Totally Lead-Free and Halogen and Antimony Free. The Moisture Sensitivity Level (MSL) is rated at 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40V peak repetitive reverse voltage, 28V RMS.
250mA continuous forward current, with 1A non-repetitive surge.
0.35V at 10mA, 0.37V at 20mA, 0.6V at 200mA.
10ns maximum.
SOD-523 surface mount package.
-65°C to +125°C.
1A for 8.3ms single half sine-wave.
