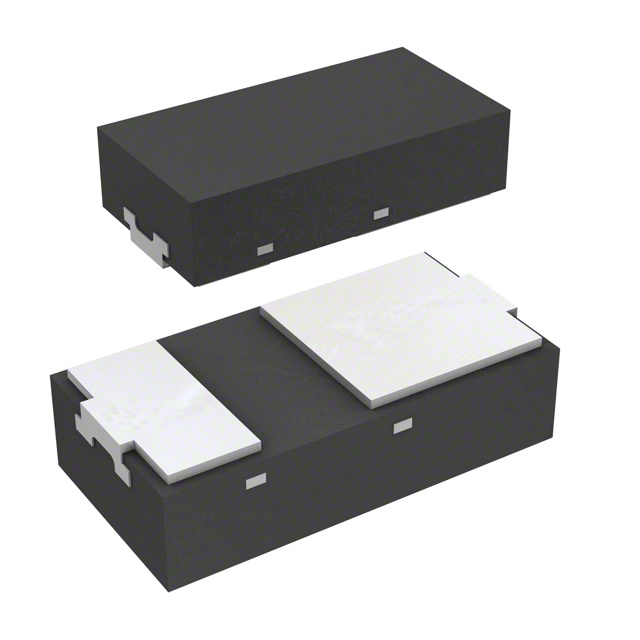

The SDM1M40LP8-7 from Diodes Incorporated is a 1.0A surface mount Schottky rectifier diode in the industry-standard U-DFN1608-2 package. It offers a peak repetitive reverse voltage of 40V and an average rectified output current of 1A. The device features an ultra-low forward voltage drop of 0.66V maximum at 1A and a reverse leakage current of only 0.02mA at 40V and 25°C. The reverse recovery time is 8.4ns, enabling fast switching in high-frequency circuits. The junction capacitance is typically 25pF at 5V and 1MHz.
Designed for high-efficiency power conversion, the SDM1M40LP8-7 is ideal for use as a rectifier, freewheel diode, or blocking diode in DC-DC converters and AC-DC adaptors. The low forward voltage reduces power loss and improves thermal performance. The high temperature reverse leakage stability increases reliability against thermal runaway failure.
The device is housed in a U-DFN1608-2 surface mount package with molded plastic green molding compound. It is rated UL 94V-0 for flammability and has an MSL Level 1 moisture sensitivity. The operating temperature range is -65°C to 150°C. The terminals have a NiPdAu finish over a copper leadframe.
The SDM1M40LP8-7 is fully RoHS3 compliant, lead-free, and halogen- and antimony-free, making it environmentally friendly for global use. It is available in tape and reel packaging with a standard quantity of 10,000 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.44 | $0.44 |
| 10+ | $0.27 | $0.27 |
| 100+ | $0.17 | $0.17 |
| 500+ | $0.13 | $0.13 |
| 1,000+ | $0.10 | $0.10 |
| 10,000+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 V.
1 A.
0.66 V maximum at 1A and 25°C.
8.4 ns.
U-DFN1608-2 surface mount package.
-65°C to 150°C.
0.02 mA maximum at 40V reverse voltage and 25°C.
