| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

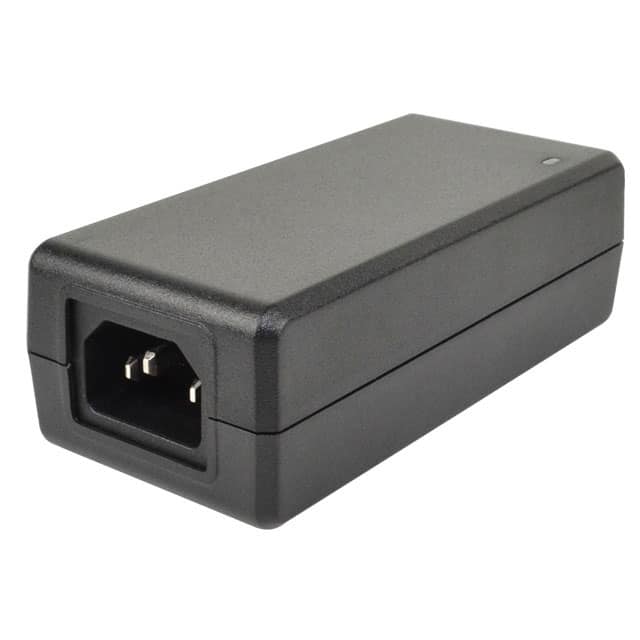

The CUI Inc. SDI65-18-U-P6 is a versatile AC-DC desktop power supply designed for ITE (Commercial) applications. It delivers a stable 18V output at up to 3.62A, providing a total of 65W of power.
This power supply features a universal input voltage range of 90-264 Vac and operates at frequencies between 47-63 Hz. It boasts DoE Level VI and CoC Tier 2 efficiency compliance, along with a low no-load power consumption of 0.150W at 230 Vac.
Key electrical protections include over-voltage, over-current, and short-circuit protection with auto-recovery. The unit is certified to UL/cUL, PSE, and other international safety standards, ensuring reliable operation. Its compact desktop form factor and IEC 320-C14 input connector make integration straightforward.
Environmental specifications include an operating temperature range of 0°C to 40°C and humidity resistance. The SDI65-18-U-P6 is designed for robust performance in various international applications.
The output voltage is 18 Vdc.
The maximum output current is 3.62 A.
The maximum output power is 65 W.
The input voltage range is 90 to 264 Vac.
It meets DoE Level VI and CoC Tier 2 efficiency standards.
The operating temperature range is 0°C to 40°C.
It uses an IEC 320-C14 input connector.
