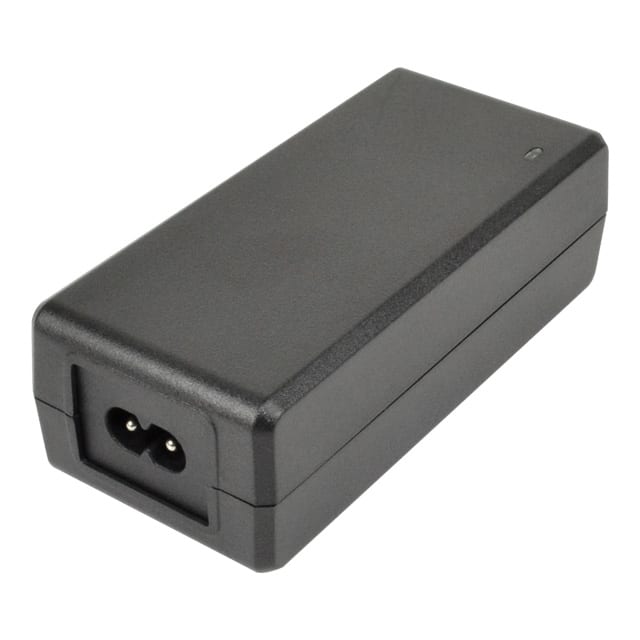

The CUI Inc. SDI65-12-UD-P5R is a versatile AC-DC desktop power supply designed for ITE (Commercial) applications. It delivers a stable 12V output at a maximum current of 5A, providing a total power of 60W. The unit accepts a universal input voltage range of 90-264 Vac and operates with DoE Level VI and CoC Tier 2 efficiency standards.
Key features include over-voltage and short-circuit protections, ensuring reliable operation. The power supply is certified to UL/cUL, PSE, and other international safety standards, including 60950-1 and 62368-1. Its compact dimensions of 115 x 53 x 38 mm make it suitable for space-constrained designs. The input connector is an IEC 320-C8, and the output is a 2.1mm I.D. x 5.5mm O.D. barrel plug with positive center polarization.
This power supply is designed for applications requiring a reliable and efficient power source. Its robust construction and safety certifications make it a suitable choice for various commercial and industrial equipment.
The operating temperature range is 0°C to 40°C.
The adapter measures 115 x 53 x 38 mm and weighs 310 g. It has an IEC 320-C8 input connector and a 2.1mm ID x 5.5mm OD right-angle barrel plug output connector with a 1.5 m cord.
The nominal output voltage is 12 Vdc.
The maximum output current is 5 A.
It meets Level VI and CoC Tier 2 efficiency standards.
It includes over voltage protection (latch off at 150%), over current protection (auto recovery at 180%), and short circuit protection (auto recovery).
The input voltage range is 90 to 264 Vac.
