| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Weight | |
| Width |

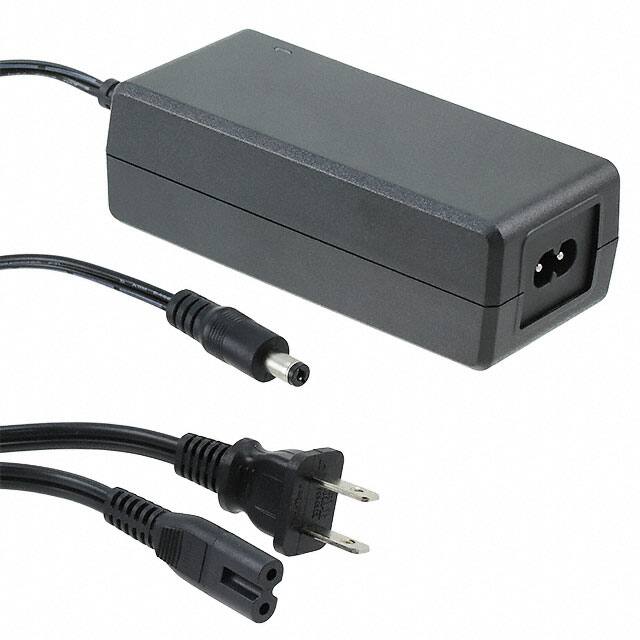

The CUI Inc. SDI50-24-UDC-P5 is a versatile AC-DC desktop power supply designed for commercial ITE applications. It delivers a stable 24VDC output at up to 2.1A, providing a total of 50W of power.
This adapter features a universal input voltage range of 90-264 Vac and operates at a frequency of 47-63 Hz. It meets DoE Level VI and CoC Tier 2 efficiency requirements, ensuring energy savings. The power supply includes over-voltage, over-current, and short-circuit protections for enhanced reliability.
With compact dimensions of 115 x 53 x 38 mm, the SDI50-24-UDC-P5 is suitable for space-constrained designs. It utilizes an IEC320/C8 input connector and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D.) with positive center polarization. The unit comes with a 72-inch North American input cable.
The SDI50-24-UDC-P5 provides a 24VDC output voltage at a maximum current of 2.1A.
This adapter accepts a universal input voltage range of 90 to 264 Vac.
The power rating for this unit is 50 Watts.
The operating temperature range is from 0°C to 40°C.
Yes, it meets DoE Level VI and CoC Tier 2 efficiency standards.
It has safety approvals including UL/cUL (60950-1, 62368-1), PSE, LPS, and UKCA.
