| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Weight | |
| Width |

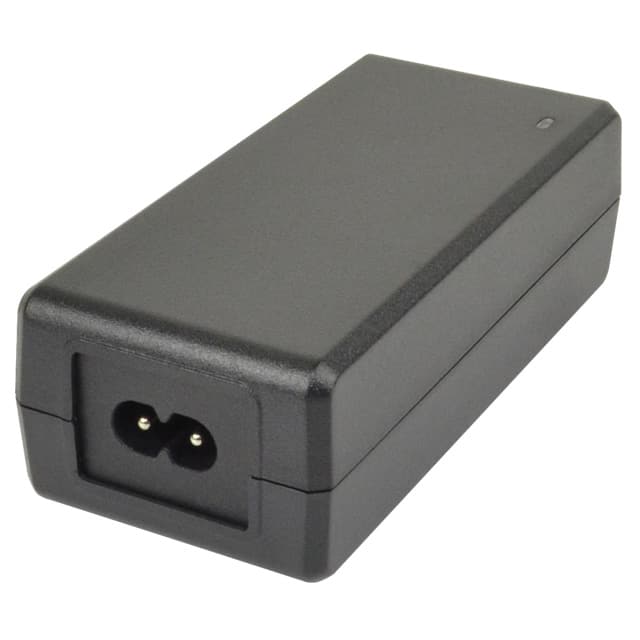

The CUI Inc. SDI50-24-UD-P5R is a versatile AC-DC power supply designed for ITE (Commercial) applications. It delivers a stable 24V output at up to 2.1A, providing a total of 50W of power.
This power supply features a universal input range of 90-264 Vac and complies with DoE Level VI and CoC Tier 2 efficiency standards, ensuring energy efficiency. It includes over-voltage and short-circuit protections for enhanced reliability.
The compact desktop form factor, with dimensions of 115 x 53 x 38 mm, makes it suitable for space-constrained designs. The unit utilizes an IEC320/C8 input connector and offers a barrel plug output connector (2.1mm I.D. x 5.5mm O.D.).
Safety approvals include UL/cUL, PSE, and compliance with standards such as 60950-1 and 62368-1, making it suitable for international use.
The input voltage range is 90 to 264 Vac at 47 to 63 Hz.
It provides 24 Vdc output at up to 2.1 A, with a maximum power of 50 W.
The operating temperature range is 0°C to 40°C.
Dimensions are 115 x 53 x 38 mm (4.53 x 2.09 x 1.50 inches) and weight is 310 g without AC cord.
It meets Level VI and CoC Tier 2 efficiency standards.
It has UL/cUL (60950-1, 62368-1), PSE, LPS, and UKCA approvals.
The isolation voltage is 3000 Vac minimum for 1 minute.
