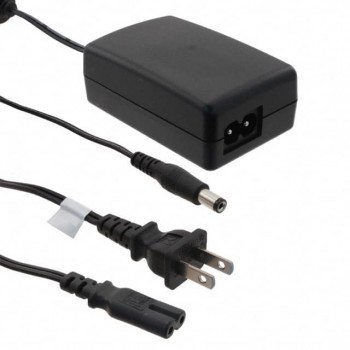

This AC/DC desktop adapter from CUI Inc., part of the SDI50-U series, delivers 50W of power with a single 19VDC output. Designed for versatility, it accepts a universal input voltage range of 90 to 264 Vac and operates efficiently, meeting DoE Level VI and CoC Tier 2 standards.
The adapter is suitable for ITE (Commercial) applications and includes protections for over-voltage, over-current, and short circuits. Its compact dimensions of 115.0mm x 53.0mm x 38.0mm make it ideal for space-constrained designs. The output is delivered via a standard barrel plug (2.5mm I.D. x 5.5mm O.D.) with a 1.50m cord, and the input connects via an IEC 320-C14 connector.
Safety approvals include UL/cUL, PSE, and others, ensuring compliance with international standards such as IEC 60950-1 and IEC 62368-1. The unit operates within a temperature range of 0°C to 40°C.
The output voltage is 19V.
The maximum output current is 2.64A.
The power rating is 50W.
The input voltage range is 90-264 Vac.
The operating temperature range is 0°C to 40°C.
It has a Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm connector.
Yes, it meets DoE Level VI and CoC Tier 2 efficiency standards.
