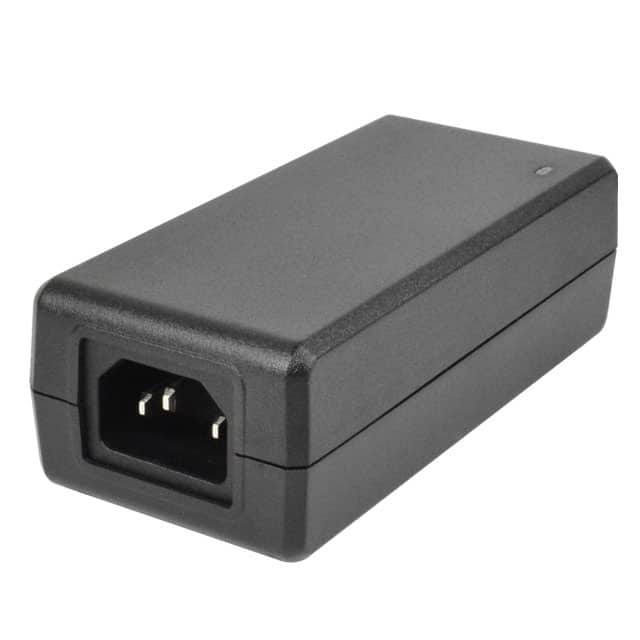

SDI50-15-U-P5 The CUI Inc. SDI50-15-U-P5 is a 50W AC-DC power supply with a 15V output. It features a universal input range of 90-264Vac and meets DoE Level VI efficiency standards.
Mfr Part #:

SDI50-15-U-P5

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. SDI50-15-U-P5 is a 50W AC-DC power supply with a 15V output. It features a universal input range of 90-264Vac and meets DoE Level VI efficiency standards.
Stock on Request

SDI50-15-U-P5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Frequency
Height
Input Connector
Input Type
Length
No Load Power Consumption
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
Standard Number
Storage Temperature
Tape & Reel
Voltage
Width
View Similar Products (0)

SDI50-15-U-P5 Description

Short technical summary and product information.

The CUI Inc. SDI50-15-U-P5 is a versatile AC-DC power supply designed for ITE (Commercial) applications. It delivers a stable 15V output at up to 3.34A, providing a total power of 50W. The unit operates with a universal input voltage range of 90-264Vac and 47-63Hz frequency, making it suitable for international use.



This power supply meets DoE Level VI and CoC Tier 2 efficiency requirements, ensuring energy savings. It includes essential protections such as over-voltage, over-current, and short-circuit protection with auto-recovery.



The SDI50-15-U-P5 features a compact desktop form factor (Class I) with dimensions of 115.0mm x 53.0mm x 38.0mm. It utilizes an IEC320-C14 input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D.). The unit is certified to UL/cUL, PSE, and other international safety standards, and complies with FCC Part 15B Class B and CE EMI/EMC regulations.

SDI50-15-U-P5 Quick Information

Product Type: AC DC Desktop, Wall Adapter
Series: SDI50-U
Canonical Name: CUI Inc. SDI50-15-U-P5 AC-DC Power Supply
Subcategory: Desktop Power Supply

SDI50-15-U-P5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SDI50-15-U-P5 Features

  • Delivers 15V at 3.34A for 50W output.
  • Universal 90-264Vac input range.
  • Meets DoE Level VI efficiency standards.
  • Includes OVP, OCP, and SCP protections.
  • Compact desktop form factor, IEC320-C14 input.

SDI50-15-U-P5 Applications

  • Ideal for commercial IT equipment.
  • Suitable for international device applications.
  • Powers various electronic systems.
  • Used in general purpose electronics.

SDI50-15-U-P5 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the SDI50-15-U-P5?

The output voltage is 15V.

What is the maximum output current for the SDI50-15-U-P5?

The maximum output current is 3.34A.

What is the maximum power output of the SDI50-15-U-P5?

The maximum power output is 50W.

What is the input voltage range for the SDI50-15-U-P5?

The input voltage range is 90-264Vac.

What is the operating temperature range for this power supply?

The operating temperature range is 0°C to 40°C.

What type of input connector does the SDI50-15-U-P5 use?

It uses an IEC 320-C14 input connector.

What are the dimensions of the SDI50-15-U-P5?

The dimensions are 115.0mm x 53.0mm x 38.0mm.
