| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

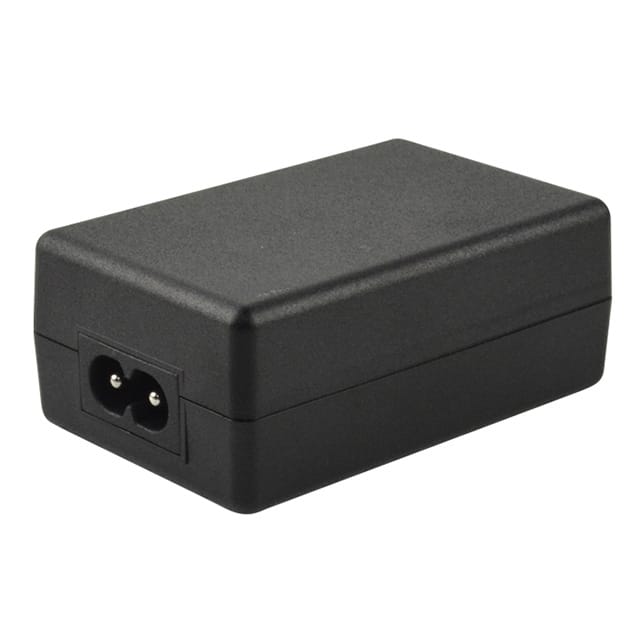

The CUI Inc. SDI12-12-UD2-P6 is a versatile AC/DC desktop power adapter designed for ITE (Commercial) applications. It delivers a stable 12V output with a maximum current of 1A, providing up to 12W of continuous power.
This adapter features a universal input voltage range of 90-264 Vac and operates efficiently, meeting DoE Level VI and CoC Tier 2 standards. It includes essential protections such as over-voltage, over-current, and short-circuit protection for enhanced safety and reliability.
The compact desktop form factor (Class II) and IEC320-C8 input connector make it suitable for various setups. The output is delivered via a standard barrel plug (2.5mm I.D. x 5.5mm O.D.) with a positive center polarization. It also comes with a 1.50m cord.
Safety approvals include CB Scheme, EN, FCC, IEC, PSE, and UL, complying with standards like IEC 62368-1. The operating temperature range is 0°C to 40°C.
The SDI12-12-UD2-P6 provides a 12Vdc output voltage at a maximum current of 1A.
The adapter has a power rating of 12W.
This adapter meets DoE Level VI and CoC Tier 2 efficiency standards.
The operating temperature range is from 0°C to 40°C.
Yes, the 12 Vdc output model has over-voltage protection that shuts down at 21.6 Vdc.
The adapter uses an IEC 320-C8 input connector.
The RoHS status is RoHS3 Compliant.
