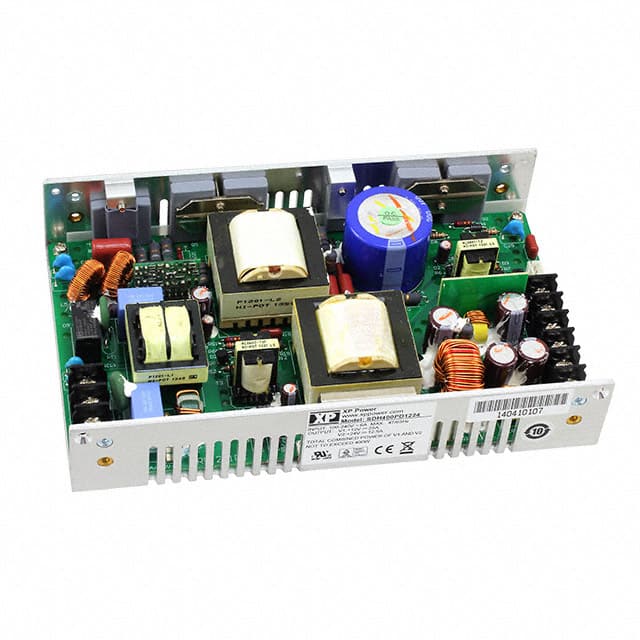

The XP Power SDH400PD1224 is a versatile AC-DC power supply from the SDH400 series, delivering up to 400W of power. This dual-output model provides +12VDC at 25.00A and +24VDC at 12.5A, with a total power capacity of 400W. It supports a wide input voltage range of 90-264 VAC, making it suitable for global applications.
Designed for convection cooling, this converter operates within an ambient temperature range of 0°C to 70°C, with derating applied above 50°C. It features adjustable output voltages with ±5% trim and an initial set accuracy of ±1%. The unit complies with EN55022 Level B for conducted and radiated emissions, and meets safety standards including EN60950-1, UL60950-1, and CSA22.2 No.60950-1.
The SDH400PD1224 is housed in an open frame, chassis mount format with dimensions of 7.00" L x 5.00" W x 1.25" H (177.8mm x 127.0mm x 31.7mm). It includes features such as remote on/off and remote sense, and offers an efficiency of up to 88% at 230V full load. This power supply is ideal for ITE (Commercial) applications requiring reliable and efficient power conversion.
The SDH400PD1224 provides dual outputs of +12VDC and +24VDC.
The total power output for the SDH400PD1224 is 400W.
The input voltage range is 90-264 VAC.
The operating temperature range is 0°C to 70°C.
The dimensions are 7.00" L x 5.00" W x 1.25" H (177.8mm x 127.0mm x 31.7mm).
Yes, it complies with EN55022 Level B for conducted and radiated emissions, and EN61000-4, EN61000-3.
