| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| Current Rating (Typical/Maximum @ approximate △T of 40℃) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Saturation Current (Typical/Maximum @ L 0 to drop approximately 30%) | |
| Shielding | |
| Supplier Device Package | |
| Tolerance | |
| Width |

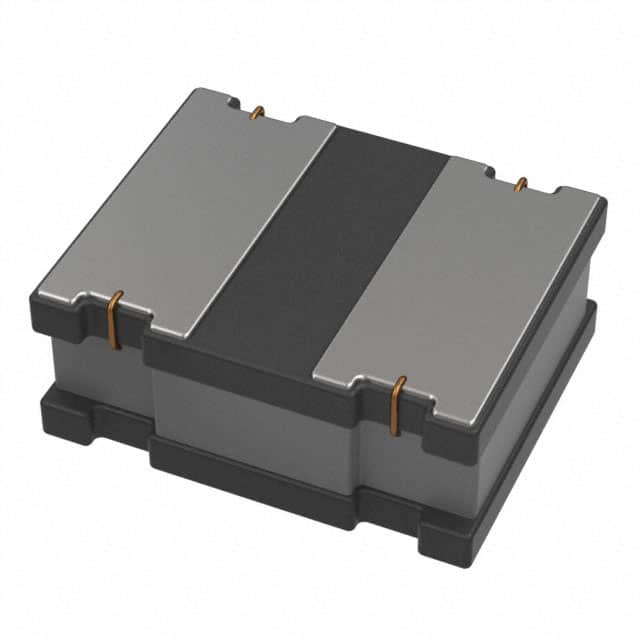

The SDEM25201B-1R0MS from Delta Electronics is a shielded fixed inductor designed for surface mount applications. It features a low profile with dimensions of 2.5mm x 2.0mm x 1.2mm.
This inductor offers a nominal inductance of 1µH with a tolerance of ±20%. It has a maximum DC resistance (DCR) of 52.5mΩ and a heat rating current of 3.70A, with a saturation current of up to 4.20A. The operating temperature range is -55°C to 125°C.
Applications for this inductor include DC/DC converters for CPUs in notebook PCs, cellular phones, LCD displays, HDDs, DVCs, DSCs, PDAs, and VRMs for servers. Its high magnetic shield construction contributes to high resolution for EMC.
The component is supplied in a 1008 (2520 Metric) package and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 1.0 µH at 1 MHz, with a tolerance of ±20%.
The maximum DC resistance is 52.5 mΩ.
The typical heat rating current is 3.70 A (maximum 3.35 A). The saturation current is typically 4.20 A (maximum 3.80 A).
It is a surface mount fixed inductor in a 1008 (2520 Metric) package.
The operating temperature range is -55°C to 125°C.
Yes, it is a shielded inductor.
The typical saturation current is 4.20 A, with a maximum of 3.80 A.
