| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Interface | |
| Lead Spacing | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Resolution (Bits) | |
| Storage Temperature | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Voltage Supply Source |
The SDC1740-411B is a specialized Analog-to-Digital Converter (ADC) or Digital-to-Analog Converter (DAC) designed for specific signal conversion tasks. Manufactured by Analog Devices Inc., this component offers a resolution of 14 bits, providing a good balance between precision and data throughput for many applications.
It features a Parallel data interface, allowing for direct data transfer. The device operates across a wide temperature range of -55°C to 125°C, making it suitable for demanding environmental conditions. The operating voltage is specified as ±15V and 5V, with supply sources being both analog and digital, dual ±.

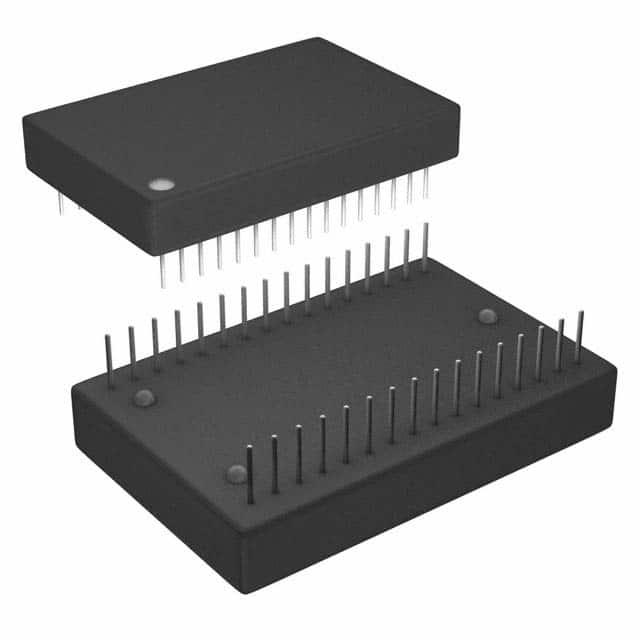

Designed for Through Hole mounting, the SDC1740-411B comes in a 32-DIP package measuring 0.900 inches (22.90mm). This package type is common for through-hole components, facilitating easier assembly and soldering on printed circuit boards. Its specific function as an S/D (Synchro-to-Digital) converter suggests applications in position sensing and control systems where analog synchro signals need to be converted into digital data.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.86 | $3.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SDC1740-411B has a resolution of 14 bits.
The SDC1740-411B uses a Parallel data interface.
The SDC1740-411B supports 3 channels.
The SDC1740-411B operates at ±15V and 5V.
The SDC1740-411B operates from -55°C to 125°C.
The SDC1740-411B is supplied in a 32-DIP (0.900", 22.90mm) package.
The SDC1740-411B is designed for Through Hole mounting.
