| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | 2026-04-21 03:15:21 |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Body Material | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Height Above Board | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Operating Force | |
| Operating Temperature | |
| Pitch | |
| Storage Temperature | |
| Termination Style | |
| Voltage Rating | |
| Washable |

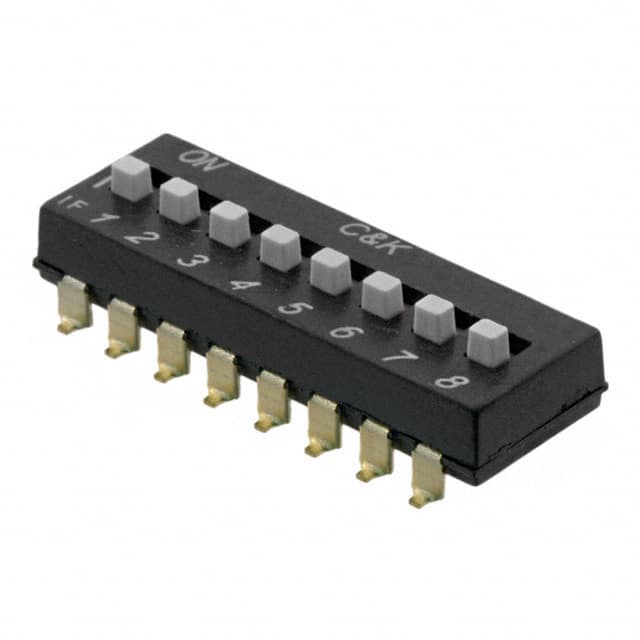

The C&K SDA08H1SBD is a low-profile slide DIP switch from the SDA series, designed for applications requiring reliable logic switching. It features a Single Pole Single Throw (SPST) circuit configuration and is rated for 25mA at 24VDC or 100mA at 5VDC. The switch has a mechanical and electrical life of 1,000 cycles.
This model is configured for surface mounting with Gull Wing termination style and has a pitch of 2.54mm (0.100"). The contact material is Beryllium Copper with a Gold finish, ensuring good conductivity and durability. The operating temperature range is -40°C to 85°C, making it suitable for various environmental conditions. The height above the board is 0.214" (5.45mm).
Key specifications include a voltage rating of 24VDC, a current rating of 25mA, and an operating force of 800 grams maximum. The switch is RoHS3 compliant and has an MSL rating of 1. Its compact design and reliable performance make it suitable for industrial controls, computer peripherals, and general function control applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 25mA at 24VDC or 100mA at 5VDC.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 Compliant.
The pitch is 2.54mm (0.100").
It has 8 positions.
