| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
700 pcs
|
700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Material | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Height Above Board | |
| Housing Material | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Operating Force | |
| Operating Temperature | |
| Pitch | |
| Storage Temperature | |
| Termination Style | |
| Voltage Rating | |
| Washable |

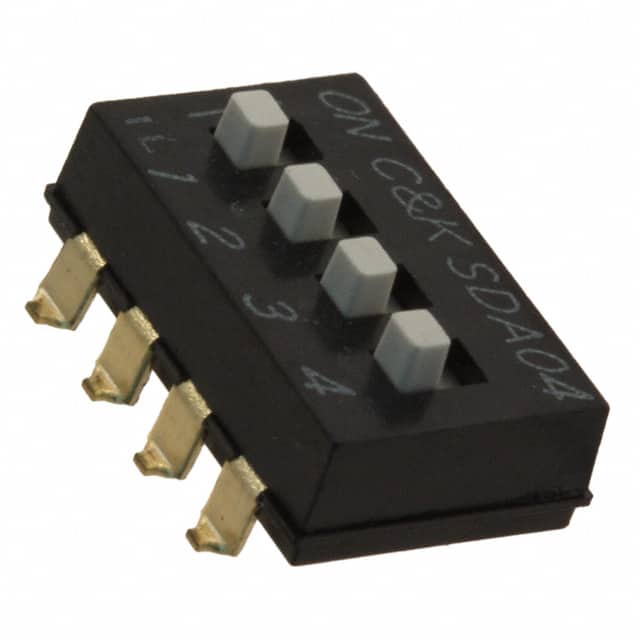

The C&K Components SDA04H1SBDR is a low profile DIP switch from the SDA Series, featuring 4 positions and designed for surface mounting. It utilizes gull wing termination style and offers a contact rating of 25mA at 24VDC, with a mechanical and electrical life of 1,000 cycles. The switch operates within a temperature range of -40°C to 85°C and has a contact resistance of 50mΩ maximum initial.
Constructed with a PPS housing and cover, and a PA6T actuator, this DIP switch is suitable for applications requiring reliable logic switching. The terminals are gold plated over nickel plated brass, ensuring good conductivity. The switch is supplied in rigid dispensing tubes.
Key specifications include a pitch of 2.54mm (0.100"), a height above board of 0.214" (5.45mm), and SPST circuitry. It is RoHS3 compliant and has an MSL rating of 1.
Typical applications include address switching for industrial controls, logic switching for computers and peripherals, and function control in various electronic devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The contact rating is 25mA @ 24VDC or 100mA @ 5VDC.
This DIP switch has 4 positions.
It uses gull wing termination style.
Yes, it is RoHS3 compliant.
