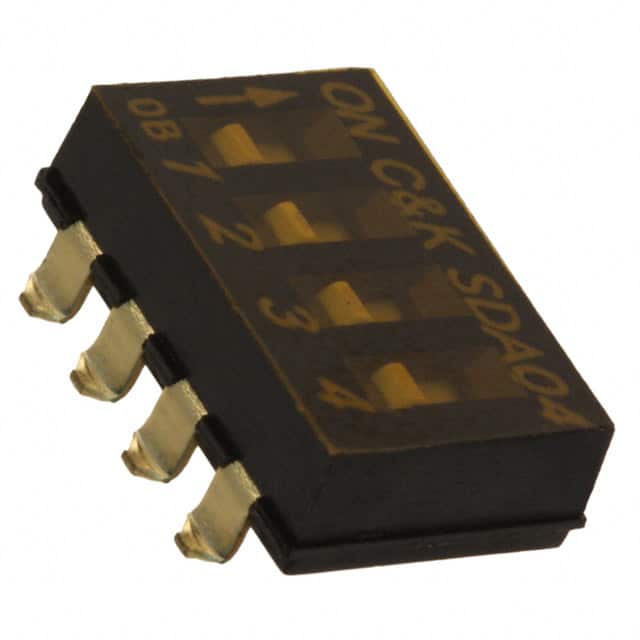

SDA04H0SBR The C&K Components SDA04H0SBR is a low profile DIP switch with 4 positions and an SPST circuit. It offers a contact rating of 25mA at 24VDC and features a surface mount gull wing termination.
Mfr Part #:

SDA04H0SBR

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components SDA04H0SBR is a low profile DIP switch with 4 positions and an SPST circuit. It offers a contact rating of 25mA at 24VDC and features a surface mount gull wing termination.
✓ Total Stock: 33,750 pcs
$ Price Range: $0.75

SDA04H0SBR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
33,750 pcs
On Request
33750 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SDA04H0SBR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Contact Resistance
Current Rating (Amps)
Dielectric Withstanding Voltage
Features
Height Above Board
Insulation Resistance
Mounting Type
Number of Positions
Operating Force
Operating Temperature
Pitch
Storage Temperature
Termination Style
Voltage Rating
View Similar Products (0)

SDA04H0SBR Description

Short technical summary and product information.

The C&K Components SDA04H0SBR is a low profile DIP switch designed for various applications. It features a Single Pole Single Throw (SPST) circuit configuration with 4 positions.



This switch has a contact rating of 25mA at 24VDC and a mechanical and electrical life of 1,000 cycles. The contact resistance is a maximum of 50 mΩ initially, and insulation resistance is a minimum of 100 MΩ. The dielectric withstanding voltage is 300 V DC minimum for 1 minute.



Designed for surface mounting with gull wing termination, the SDA04H0SBR operates within a temperature range of -40°C to 85°C. It also features a tape seal for added protection and is RoHS3 compliant.



Typical applications include address switching for industrial controls, logic switching for computers and peripherals, and function control in numerous electronic devices.

SDA04H0SBR Quick Information

Product Type: DIP Switch
Series: SDA
Canonical Name: C&K Components SDA Series Low Profile DIP Switch, SPST, 4 Positions, 25mA @ 24VDC, Surface Mount, Gull Wing
Subcategory: Low Profile

SDA04H0SBR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SDA04H0SBR Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

SDA04H0SBR Features

  • Low profile DIP switch design.
  • 4 positions, SPST circuit.
  • 25mA @ 24VDC contact rating.
  • Surface mount with gull wing termination.
  • RoHS3 compliant for environmental standards.

SDA04H0SBR Applications

  • Used for address switching in industrial controls.
  • Ideal for logic switching in computers.
  • Suitable for function control in various applications.
  • Applicable in space-saving electronic device designs.

SDA04H0SBR FAQs

4 frequently asked questions generated from this part’s specifications.
What is the contact rating for the C&K Components SDA04H0SBR DIP switch?

The contact rating is 25mA at 24VDC or 100mA at 5VDC.

What is the operating temperature range for this DIP switch?

The operating temperature range is -40°C to 85°C.

What type of mounting and termination does the SDA04H0SBR use?

It uses surface mount with gull wing termination.

Is the C&K Components SDA04H0SBR RoHS compliant?

Yes, it is RoHS3 Compliant.
