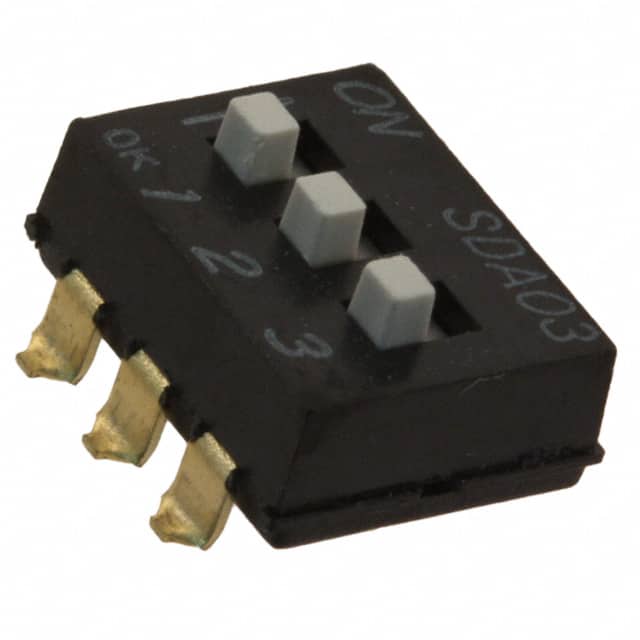

The C&K Components SDA03H1SBD is a low-profile slide DIP switch with a SPST circuit configuration. It is designed for surface mount applications and features gull wing terminations for easy integration into PCBs.
This switch operates at a voltage rating of 24VDC and a current rating of 25mA. It has a pitch of 2.54mm (0.100 inches) and a height above board of 0.214 inches (5.45mm). The operating temperature range is -40°C to 85°C, making it suitable for various environmental conditions. The actuator is a standard slide type, and it is not washable.
Key specifications include a contact resistance of 50mΩ max. initial and an insulation resistance of 100MΩ min. The dielectric withstanding voltage is 300V DC min. for 1 minute. The mechanical and electrical life is rated for 1,000 cycles at rated loads. Materials include PPS housing and cover, PA6T actuator, gold-plated Beryllium copper contacts, and gold-plated over nickel-plated brass terminals.
Typical applications for this switch include address switching for industrial controls, logic switching for computers and peripherals, and function controlling for numerous applications. Its low-profile design saves space on the circuit board.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 25 mA @ 24 V DC or 100 mA @ 5 V DC.
The mechanical and electrical life is 1,000 cycles at rated loads.
The operating temperature range is -40°C to 85°C.
The mounting type is Surface Mount.
The termination style is Gull Wing and the pitch is 2.54mm (0.100").
The switch has 3 positions.
