SDA03H0SBR The C&K Components SDA03H0SBR is a slide DIP switch with 3 positions and an SPST circuit. It is rated for 25mA at 24VDC and features a Gull Wing termination style.
Mfr Part #:

SDA03H0SBR

Available from 2 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components SDA03H0SBR is a slide DIP switch with 3 positions and an SPST circuit. It is rated for 25mA at 24VDC and features a Gull Wing termination style.
✓ Total Stock: 3,752 pcs
$ Price Range: $0.75

SDA03H0SBR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
3,750 pcs
On Request
3750 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SDA03H0SBR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Contact Resistance
Current Rating (Amps)
Dielectric Withstanding Voltage
Features
Height Above Board
Insulation Resistance
Mounting Type
Number of Positions
Operating Force
Operating Temperature
Pitch
Tape & Reel
Termination Style
Voltage Rating
Washable
View Similar Products (0)

SDA03H0SBR Description

Short technical summary and product information.

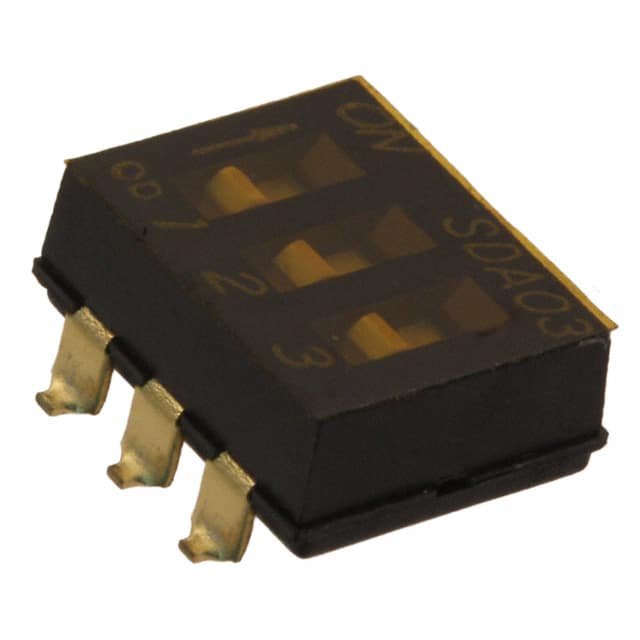

The C&K Components SDA03H0SBR is a low-profile slide DIP switch designed for surface mounting. It features a 3-position SPST (Single Pole Single Throw) circuit configuration.



This switch is rated for a contact rating of 25mA at 24VDC and 100mA at 5VDC. The contact resistance is a maximum of 50 mΩ initial, with an insulation resistance of 100 MΩ minimum between terminals. The dielectric withstanding voltage is 300 V DC minimum for 1 minute.



With a pitch of 2.54mm (0.100"), the SDA03H0SBR has a height above the board of 0.175" (4.45mm). The actuator type is a standard slide, with flush or recessed options available. The termination style is Gull Wing, suitable for surface mount applications. The operating temperature range is -40°C to 85°C.



Typical applications for this series include address switches for industrial controls, logic switching for computers and peripherals, and function control in various electronic devices.

SDA03H0SBR Quick Information

Product Type: DIP Switch
Series: SDA
Canonical Name: C&K Components SDA03H0SBR Slide DIP Switch
Subcategory: DIP Switches

SDA03H0SBR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SDA03H0SBR Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

SDA03H0SBR Features

  • 3-position SPST slide DIP switch.
  • Rated for 25mA at 24VDC.
  • Gull Wing termination for surface mounting.
  • Operating temperature range -40°C to 85°C.
  • Washable for process flexibility.

SDA03H0SBR Applications

  • Used in electronic control panels
  • Suitable for instrumentation devices
  • Ideal for communication equipment
  • Designed for automated assembly

SDA03H0SBR FAQs

4 frequently asked questions generated from this part’s specifications.
What is the contact rating for the C&K SDA03H0SBR DIP switch?

The contact rating is 25 mA @ 24 V DC or 100 mA @ 5 V DC.

What is the operating temperature range for this DIP switch?

The operating temperature range is -40°C to 85°C.

What type of termination does the SDA03H0SBR use?

It uses Gull Wing termination.

Is the C&K SDA03H0SBR RoHS compliant?

Yes, it is RoHS3 Compliant.
