| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39,750 pcs
|
39750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Height Above Board | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Operating Force | |
| Operating Temperature | |
| Pitch | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating | |
| Washable |

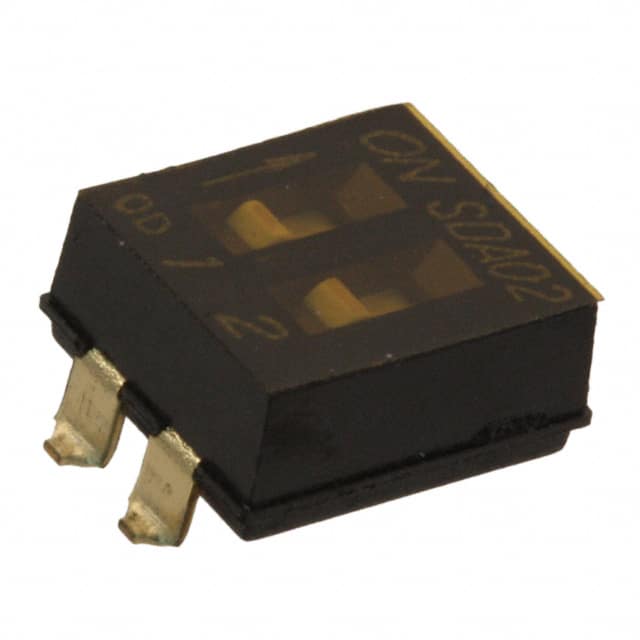

The C&K Components SDA02H0SBR is a low-profile DIP switch featuring a slide actuator and SPST circuit. It is designed for surface mounting with gull wing termination style and a pitch of 2.54mm. This switch operates with a contact rating of 25mA at 24VDC or 100mA at 5VDC and has a mechanical and electrical life of 1,000 cycles. The operating temperature range is -40°C to 85°C. Materials include PPS housing and cover, PA6T actuator, gold-plated Beryllium copper contacts, and gold-plated over nickel-plated brass terminals. The tape seal is made of Polyimide. It is suitable for applications such as address switches for industrial controls, logic switching for computers and peripherals, and function control.
This series offers low profile design, saving valuable board space. Both thru-hole and surface mount models are available, with tape and reel packaging options for surface mount configurations. The switch is washable and features a tape seal for protection. The SDA02H0SBR is RoHS3 compliant and has an MSL of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 25mA at 24VDC or 100mA at 5VDC.
The operating temperature range is -40°C to 85°C.
This DIP switch supports surface mounting.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
