SDA01H1SBDR The C&K Components SDA01H1SBDR is a single-pole, single-throw (SPST) DIP switch designed for surface mount applications. It features a 25mA contact rating at 24VDC and operates within a temperature range of -40°C to 85°C.
Mfr Part #:

SDA01H1SBDR

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components SDA01H1SBDR is a single-pole, single-throw (SPST) DIP switch designed for surface mount applications. It features a 25mA contact rating at 24VDC and operates within a temperature range of -40°C to 85°C.
✓ Total Stock: 160 pcs
$ Price Range: $0.75

SDA01H1SBDR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
160 pcs
On Request
160 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SDA01H1SBDR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Body Material
Circuit
Contact Finish
Contact Material
Contact Resistance
Current Rating (Amps)
Dielectric Withstanding Voltage
Height Above Board
Insulation Resistance
Length
Mounting Type
Number of Positions
Operating Force
Operating Temperature
Pitch
Storage Temperature
Termination Style
Voltage Rating
Washable
View Similar Products (0)

SDA01H1SBDR Description

Short technical summary and product information.

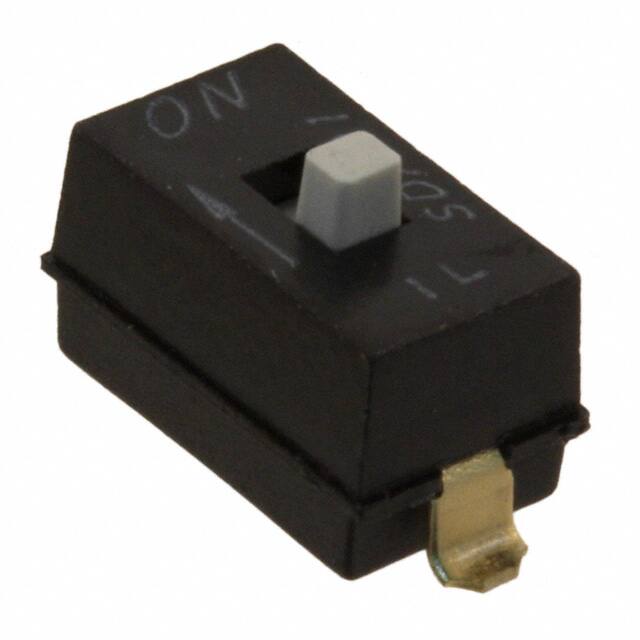

This C&K Components SDA01H1SBDR is a low-profile DIP switch with a single position and SPST circuitry. It is designed for surface mount applications with gull wing termination style and a pitch of 2.54mm (0.100").



The switch has a contact rating of 25mA at 24VDC or 100mA at 5VDC, with a mechanical and electrical life of 1,000 cycles at rated loads. The contact resistance is a maximum of 50mΩ initial, and insulation resistance is a minimum of 100MΩ between terminals. It can withstand 300V DC for 1 minute.



Operating within a temperature range of -40°C to 85°C, the SDA01H1SBDR has a maximum operating force of 800 grams. The housing and cover are made of PPS (UL94V-0), the actuator is PA6T (UL94-0), and the contacts are gold-plated Beryllium copper. Terminals are gold-plated over nickel-plated brass. The tape seal is Polyimide.



Typical applications include address switches for industrial controls, logic switching for computers and peripherals, and function control for numerous applications. It is not washable and has a REACH status of 'Unaffected'.

SDA01H1SBDR Quick Information

Product Type: DIP Switch
Series: SDA
Canonical Name: C&K Components SDA01H1SBDR DIP Switch
Subcategory: DIP Switch

SDA01H1SBDR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SDA01H1SBDR Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

SDA01H1SBDR Features

  • Single pole, single throw (SPST) circuit.
  • 25mA contact rating at 24VDC.
  • 1,000 cycle mechanical and electrical life.
  • Surface mount with gull wing termination.
  • Operates from -40°C to 85°C.

SDA01H1SBDR Applications

  • Used in electronic control panels
  • Suitable for circuit on/off switching
  • Ideal for compact device assemblies
  • Applicable in automation and instrumentation

SDA01H1SBDR FAQs

4 frequently asked questions generated from this part’s specifications.
What is the contact rating for the C&K Components SDA01H1SBDR DIP switch?

The contact rating is 25mA at 24VDC or 100mA at 5VDC.

What is the operating temperature range for this DIP switch?

The operating temperature range is -40°C to 85°C.

What is the mechanical and electrical life of the SDA01H1SBDR?

The mechanical and electrical life is 1,000 cycles at rated loads.

What type of mounting and termination does the SDA01H1SBDR use?

It is a surface mount type with gull wing termination.
