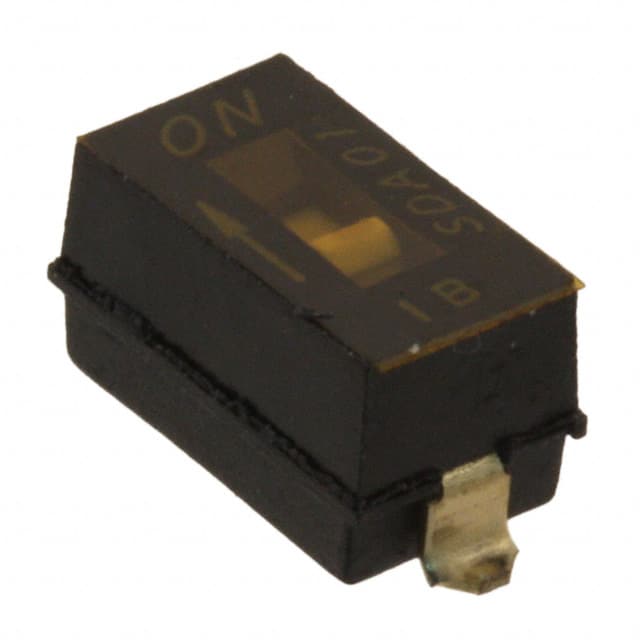

SDA01H0SBR The C&K Components SDA01H0SBR is a low profile DIP switch with a slide actuator. It features a single pole, single throw (SPST) circuit and a tape seal.
Mfr Part #:

SDA01H0SBR

Available from 2 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components SDA01H0SBR is a low profile DIP switch with a slide actuator. It features a single pole, single throw (SPST) circuit and a tape seal.
✓ Total Stock: 7,599 pcs
$ Price Range: $0.75

SDA01H0SBR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
7,500 pcs
On Request
7500 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
99 pcs
On Request
99 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SDA01H0SBR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Contact Resistance
Current Rating (Amps)
Dielectric Withstanding Voltage
Features
Height Above Board
Insulation Resistance
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Operating Force
Operating Temperature
Pitch
Storage Temperature
Tape & Reel
Termination Style
Voltage Rating
Washable
View Similar Products (0)

SDA01H0SBR Description

Short technical summary and product information.

The C&K Components SDA01H0SBR is a low profile DIP switch designed for space-saving applications. This switch features a single pole, single throw (SPST) configuration with a tape seal for protection. It is rated for 25mA at 24VDC and has a contact resistance of 50mΩ maximum.



The SDA01H0SBR utilizes a surface mountable gull wing termination style with a pitch of 2.54mm. The actuator type is a standard slide, with a flush or recessed level, and it is washable. The operating temperature range is -40°C to 85°C.



Typical applications include address switching for industrial controls, logic switching for computers and peripherals, and function control in various electronic devices. The switch is supplied in the OFF position and is RoHS3 compliant.

SDA01H0SBR Quick Information

Product Type: DIP Switch
Series: SDA Series
Canonical Name: C&K Components SDA Series Low Profile DIP Switch
Subcategory: Low Profile DIP Switch

SDA01H0SBR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SDA01H0SBR Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

SDA01H0SBR Features

  • Single pole, single throw (SPST) circuit.
  • Rated for 25mA at 24VDC.
  • Surface mount with gull wing termination.
  • Low profile design saves space.
  • Washable with tape seal protection.

SDA01H0SBR Applications

  • Used in electronic control panels
  • Suitable for low-current switching
  • Ideal for space-constrained devices
  • Applicable in industrial automation
  • Designed for reliable repeated operation

SDA01H0SBR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the contact rating for the SDA01H0SBR DIP switch?

The contact rating is 25mA at 24V DC or 100mA at 5V DC.

What is the operating temperature range for this DIP switch?

The operating temperature range is -40°C to 85°C.

What is the contact resistance of the SDA01H0SBR?

The contact resistance is a maximum of 50mΩ initial.

What type of mounting does the SDA01H0SBR use?

It uses surface mount with gull wing termination.

Is the SDA01H0SBR RoHS compliant?

Yes, it is RoHS3 Compliant.
