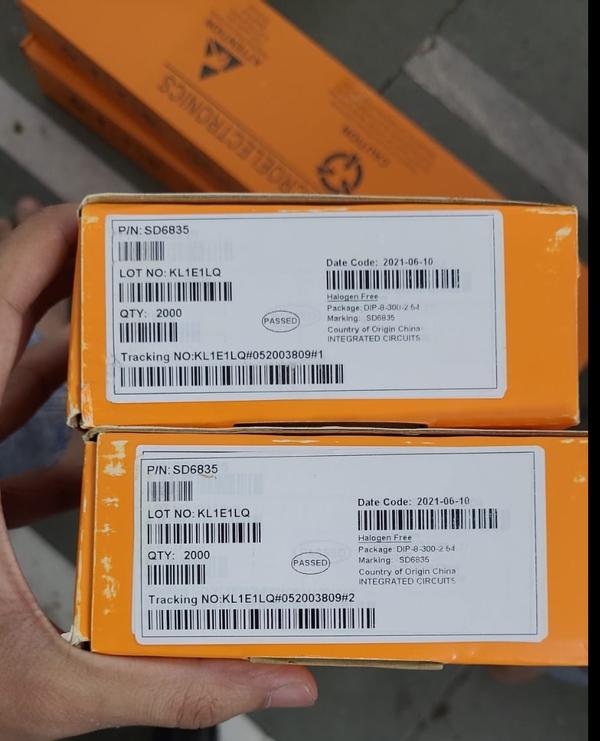

SD6835 The SD6835 from Silan is a 650V, 7A integrated circuit designed for SMPS applications. It features a built-in high-voltage MOSFET and operates in PWM/PFM modes.
Mfr Part #:

SD6835

Available from 2 distributors
Mfr Name: Silan
Silan
The SD6835 from Silan is a 650V, 7A integrated circuit designed for SMPS applications. It features a built-in high-voltage MOSFET and operates in PWM/PFM modes.
✓ Total Stock: 6,623 pcs
$ Price Range: $2.16

SD6835 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,623 pcs
On Request
1623 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SD6835 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Voltage
View Similar Products (0)

SD6835 Description

Short technical summary and product information.

The SD6835 is an integrated circuit from Silan Microelectronics, designed for Switched-Mode Power Supply (SMPS) applications. It operates with a voltage rating of 650V and a current rating of 7A, housed in a DIP-8 package.



This component utilizes current-mode PWM/PFM control and includes a built-in high-voltage MOSFET, simplifying designs that require an external sense resistor. Key features include low standby power and a low start current. In standby mode, the circuit enters a burst mode to reduce power dissipation.



The switching frequency ranges from 25kHz to 67kHz, determined by the load. It incorporates jitter frequency for reduced EMI (Electromagnetic Interference), making it suitable for various power supply designs where efficiency and low noise are important.



Applications for the SD6835 include general-purpose SMPS, power adapters, and other power conversion systems requiring a compact and efficient control IC.

SD6835 Quick Information

Product Type: Integrated Circuit
Canonical Name: SD6835
Subcategory: Special Purpose Transistor

SD6835 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SD6835 Estimated Pricing

Qty Low High
1+ $2.16 $2.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

SD6835 Features

  • 650V voltage rating
  • 7A current rating
  • DIP-8 package
  • PWM/PFM control
  • Low standby power

SD6835 Applications

  • Suitable for high-voltage power switching applications.
  • Used in SMPS circuits with built-in high-voltage MOSFET.
  • Ideal for low EMI switching power supplies.
  • Applicable in standby power reduction circuits.
  • Designed for special-purpose transistor applications.

SD6835 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the SD6835?

The SD6835 has a voltage rating of 650V.

What is the current rating of the SD6835?

The SD6835 has a current rating of 7A.

What package type is the SD6835 available in?

The SD6835 is available in a DIP-8 package.

What is the switching frequency range for the SD6835?

The switching frequency for the SD6835 is between 25kHz and 67kHz, depending on the load.
