| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
305 pcs
|
305 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

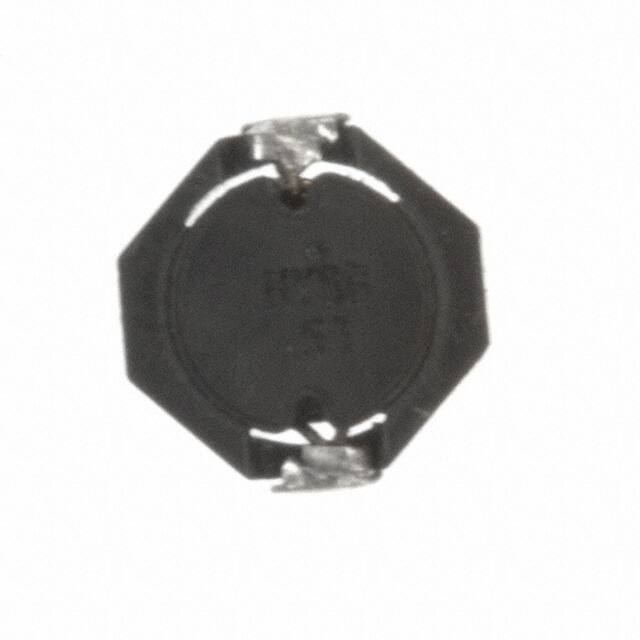

This Eaton SD53-220-R is a shielded, wirewound drum core fixed inductor designed for surface mount applications. It provides an inductance value of 22 µH with a tolerance of ±20%. The component is rated for a current of 810mA and has a maximum DC resistance of 208mOhm.
Operating within a temperature range of -40°C to 125°C, this inductor is suitable for various electronic circuits. Its dimensions are 5.20mm in length and width, and 3.00mm in height. The ferrite material contributes to its magnetic properties.
This part is compliant with RoHS3 standards and has an MSL rating of 1. It is designed for applications requiring reliable inductance and current handling capabilities in a compact, surface-mountable package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22 µH.
810 mA rated current, with a saturation current of 940 mA.
208 mOhm maximum.
±20%.
-40°C to +125°C.
Yes, it is shielded.
5.20mm x 5.20mm x 3.00mm, surface mount, nonstandard package.
