| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,800 pcs
|
5800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

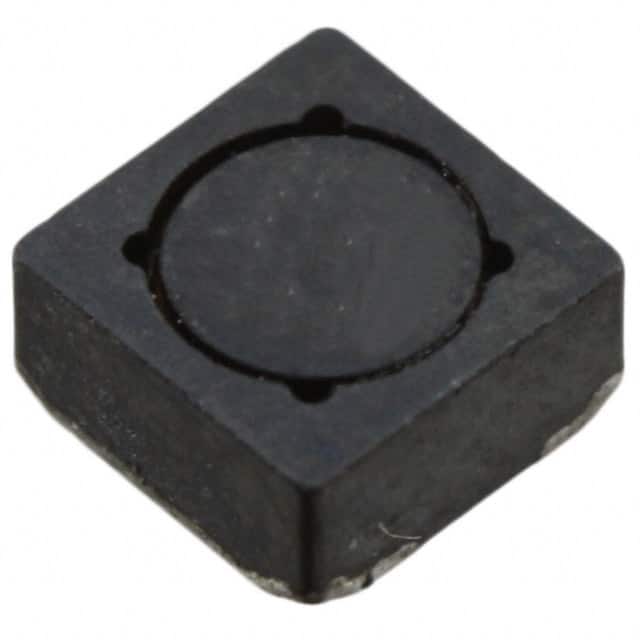

The Eaton SD25-101-R is a drum core, wirewound fixed inductor designed for surface mount applications. It offers a nominal inductance of 100µH with a tolerance of ±20%. The component is shielded and operates within a temperature range of -40°C to 85°C.
Key electrical characteristics include a current rating of 670mA and a DC resistance of 593.7mOhm. The inductor has a ferrite material construction and measures 2.50mm in height, 5.20mm in length, and 5.20mm in width. This part is suitable for various electronic circuits requiring stable inductance.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status, though these are currently unverified. The nonstandard package type is typical for this component class.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 100µH.
The current rating is 670mA.
The DC resistance is 593.7mOhm.
The operating temperature range is -40°C to 85°C.
This inductor is designed for surface mount.
Yes, the SD25-101-R is a shielded inductor.
The inductor is constructed with ferrite material.
