Mfr Part #:

SD213DE TO-72 4L

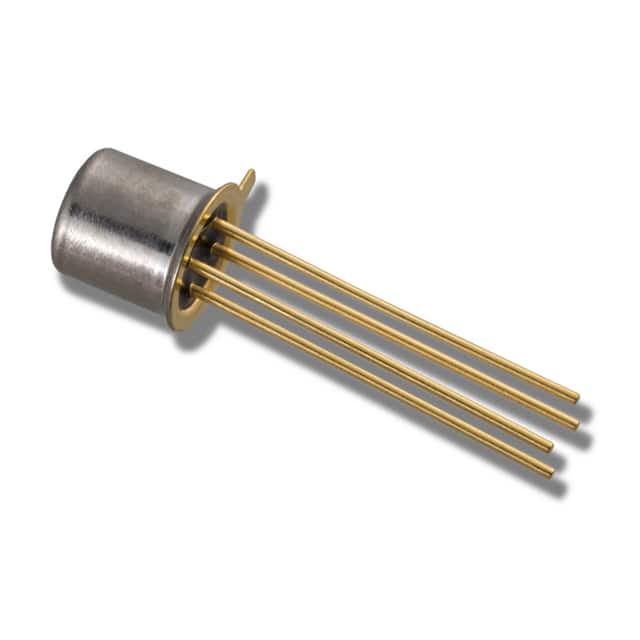

Name: SD213DE TO-72 4L
Brand: Linear Integrated Systems, Inc.
SKU: SD213DE TO-72 4L

Description:

HIGH SPEED N-CHANNEL LATERAL DMO

Stock on Request

SD213DE TO-72 4L Description

Short technical summary and product information.

HIGH SPEED N-CHANNEL LATERAL DMO

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - FETs, MOSFETs - Single
Manufacturer Name	Linear Integrated Systems, Inc.
Current	50mA (Ta)
Drain to Source Voltage (Vdss)	10 V
Drive Voltage (Max Rds On, Min Rds On)	5V, 25V
FET Type	N-Channel
Mounting Type	Through Hole
Operating Temperature	-55°C ~ 125°C (TJ)
Power Dissipation (Max)	300mW (Ta)
Rds On (Max) @ Id, Vgs	45Ohm @ 1mA, 10V
Supplier Device Package	TO-72-4
Technology	MOSFET (Metal Oxide)
Vgs (Max)	+25V, -15V
Vgs(th) (Max) @ Id	1.5V @ 1µA
