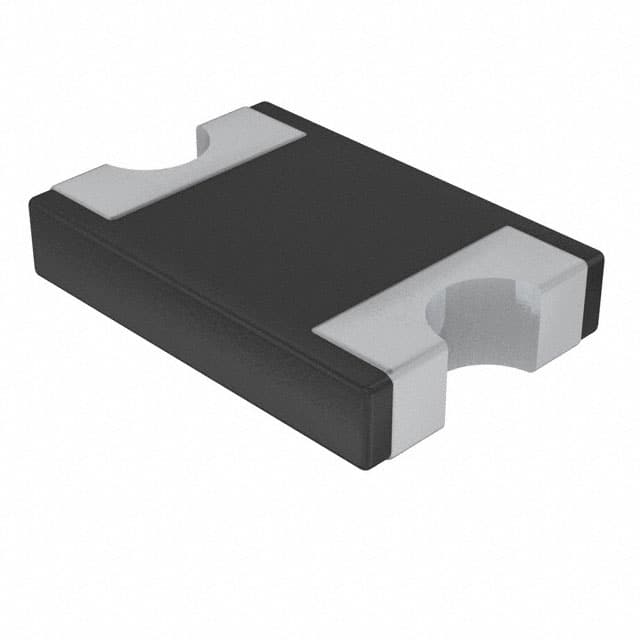

SD2114S040S8R0 The Kyocera AVX SD2114S040S8R0 is a Schottky diode designed for high-frequency rectification and switch mode power supplies. It features a 40V reverse voltage rating and an 8A forward current capability.
Mfr Part #:

SD2114S040S8R0

Available from 1 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
The Kyocera AVX SD2114S040S8R0 is a Schottky diode designed for high-frequency rectification and switch mode power supplies. It features a 40V reverse voltage rating and an 8A forward current capability.
✓ Total Stock: 36 pcs
$ Price Range: $0.99

SD2114S040S8R0 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Akira Global ✓
Non-Authorised Inventory information
36 pcs
On Request
36 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SD2114S040S8R0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Forward Voltage
Halogen Free
Lead Style
Mounting Type
Operating Temperature
Speed
Supplier Device Package
Technology
Voltage
View Similar Products (0)

SD2114S040S8R0 Description

Short technical summary and product information.

This Schottky barrier rectifier diode from Kyocera AVX, part number SD2114S040S8R0, is engineered for efficient power conversion applications. It offers a maximum reverse voltage of 40V and a maximum forward current of 8A, with a low forward voltage of 550mV at 8A.



The diode utilizes a lead-less chip form factor, enhancing heat transfer and current handling. Its fast recovery time of less than 500ns makes it suitable for high-frequency rectification.



Packaged in a surface-mount 2-SMD, No Lead (DO-214AA) case, the SD2114S040S8R0 operates within a temperature range of -55°C to 125°C. It is designed for applications such as switch mode power supplies, portable battery-powered devices, and reverse bias protection.

SD2114S040S8R0 Quick Information

Product Type: Schottky Diode
Canonical Name: Kyocera AVX SD2114S040S8R0 Schottky Diode
Subcategory: Schottky Diode

SD2114S040S8R0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SD2114S040S8R0 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

SD2114S040S8R0 Features

  • Schottky technology for high efficiency.
  • 40V maximum reverse voltage rating.
  • 8A maximum forward current capability.
  • Low 550mV forward voltage drop.
  • Fast recovery time under 500ns.

SD2114S040S8R0 Applications

  • Ideal for switch mode power supplies.
  • Suitable for high frequency rectification.
  • Used in portable battery powered devices.
  • Provides reverse bias protection.

SD2114S040S8R0 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the SD2114S040S8R0?

The maximum reverse voltage is 40V.

What is the maximum forward current rating?

The maximum forward current is 8A.

What is the forward voltage drop at 8A?

The forward voltage is 550mV maximum at 8A.

What is the reverse recovery time?

The reverse recovery time is ≤500ns (tested at >200mA Io).

What package type does the SD2114S040S8R0 use?

It uses a surface mount 2-SMD, No Lead package, with supplier device package 2114/DO-214AA.

What is the reverse leakage current at 40V?

The reverse leakage current is 500µA at 40V.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.
