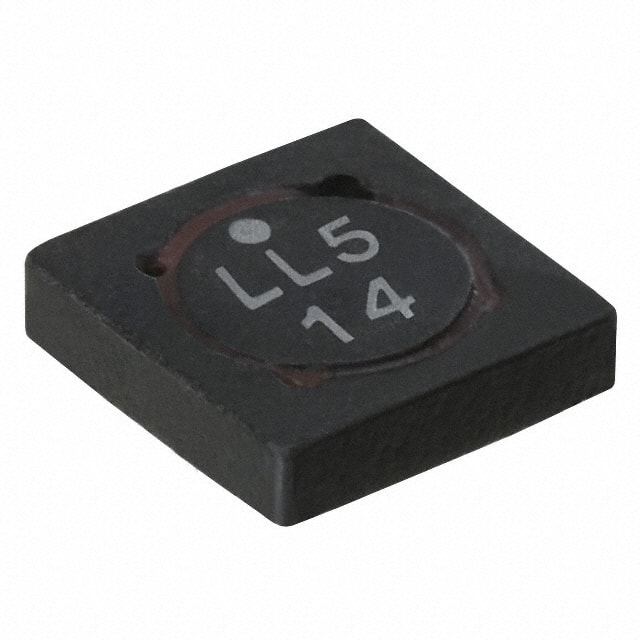

SD14-6R9-R The Eaton SD14-6R9-R is a shielded, wirewound fixed inductor with a drum core. It offers 6.9µH inductance and a current rating of 1.35A.
Mfr Part #:

SD14-6R9-R

Available from 1 distributors
Mfr Name: Eaton - Electronics Division
Eaton - Electronics Division
The Eaton SD14-6R9-R is a shielded, wirewound fixed inductor with a drum core. It offers 6.9µH inductance and a current rating of 1.35A.
✓ Total Stock: 3,000 pcs
$ Price Range: $0.52

SD14-6R9-R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SD14-6R9-R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Shielding
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

SD14-6R9-R Description

Short technical summary and product information.

This Eaton SD14-6R9-R is a fixed inductor featuring a wirewound drum core construction with shielding. It provides an inductance value of 6.9µH with a tolerance of ±20%. The component is rated for a current of 1.35A and has a DC resistance of 136.3mOhm.



Designed for surface mounting, this inductor operates within a temperature range of -40°C to 85°C. Its dimensions are 5.20mm in length and width, and 1.45mm in height. The material is ferrite, contributing to its magnetic properties.



This part is suitable for applications requiring stable inductance and current handling in a compact, shielded package. Its operating temperature range makes it versatile for various electronic designs.

SD14-6R9-R Quick Information

Product Type: Fixed Inductor
Canonical Name: Eaton SD14-6R9-R Drum Core, Wirewound Shielded Inductor
Subcategory: Fixed Inductor

SD14-6R9-R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SD14-6R9-R Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

SD14-6R9-R Features

  • Wirewound drum core shielded inductor.
  • 6.9µH inductance with ±20% tolerance.
  • Rated for 1.35A current.
  • Surface mountable ferrite construction.
  • Operates from -40°C to 85°C.

SD14-6R9-R Applications

  • Suitable for power supply filtering.
  • Used in signal processing circuits.
  • Ideal for noise suppression applications.
  • Applicable in compact electronic devices.

SD14-6R9-R FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the Eaton SD14-6R9-R?

The inductance is 6.9µH.

What is the current rating for the SD14-6R9-R inductor?

The current rating is 1.35A.

What is the DC resistance (DCR) of this inductor?

The DC resistance is 136.3mOhm.

What type of inductor is the SD14-6R9-R?

It is a drum core, wirewound, shielded inductor.

What are the dimensions of the SD14-6R9-R?

The dimensions are 5.20mm in length and width, and 1.45mm in height.
