| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,992 pcs
|
3992 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,992 pcs
|
3992 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Halogen Free | |
| Industrial Grade | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Voltage (VR) | |
| SVHC Present | |
| Speed | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Finish | |
| Termination Style | |
| Voltage |

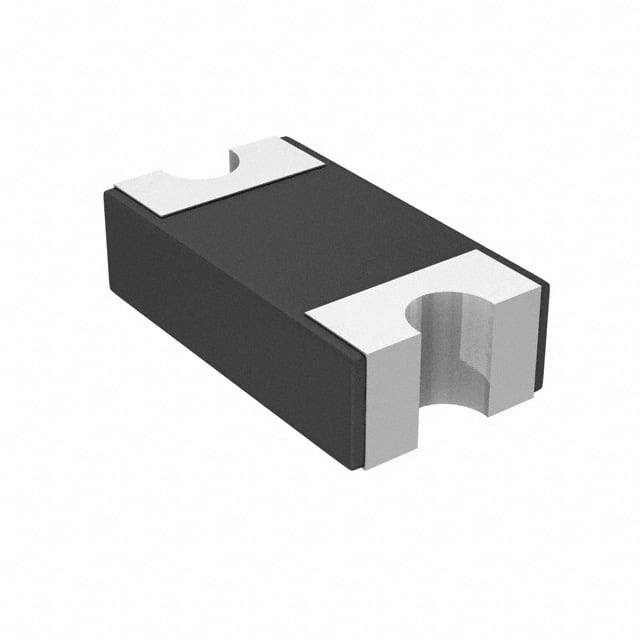

The SD1206S040S2R0 is a Schottky barrier rectifier diode from Kyocera AVX, designed for high efficiency rectification in surface mount applications. It features a maximum reverse voltage of 40V and an average forward current rating of 2A. The typical forward voltage is 500mV at 2A, enabling low power loss and high efficiency. The device offers fast recovery speed (≤500ns, >200mA), suitable for high frequency switching circuits.
This diode is housed in a lead-less chip form 1206 (3216 metric) package, which provides excellent heat transfer and eliminates wire bond issues. The terminations are 100% tin plated, lead-free, and solderable per MIL-STD-750. Operating temperature range is -55°C to 125°C, with storage from -55°C to 150°C. The package material is UL 94V-0 rated and halogen free.
Typical applications include switch mode power supplies, high frequency rectification, portable battery-powered devices, and reverse bias protection. The Schottky technology ensures low forward voltage drop and fast switching, making it ideal for high-efficiency power conversion.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.78 | $0.78 |
| 10+ | $0.49 | $0.49 |
| 100+ | $0.31 | $0.31 |
| 500+ | $0.24 | $0.24 |
| 1,000+ | $0.21 | $0.21 |
| 3,000+ | $0.18 | $0.18 |
| 6,000+ | $0.16 | $0.16 |
| 9,000+ | $0.14 | $0.14 |
| 24,000+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40V maximum.
2A average rectified current.
Typical 500mV at 2A forward current.
Fast recovery ≤500ns, >200mA.
Surface mount 1206 (3216 metric) package.
-55°C to 125°C.
Yes, RoHS3 compliant with lead-free terminations.
