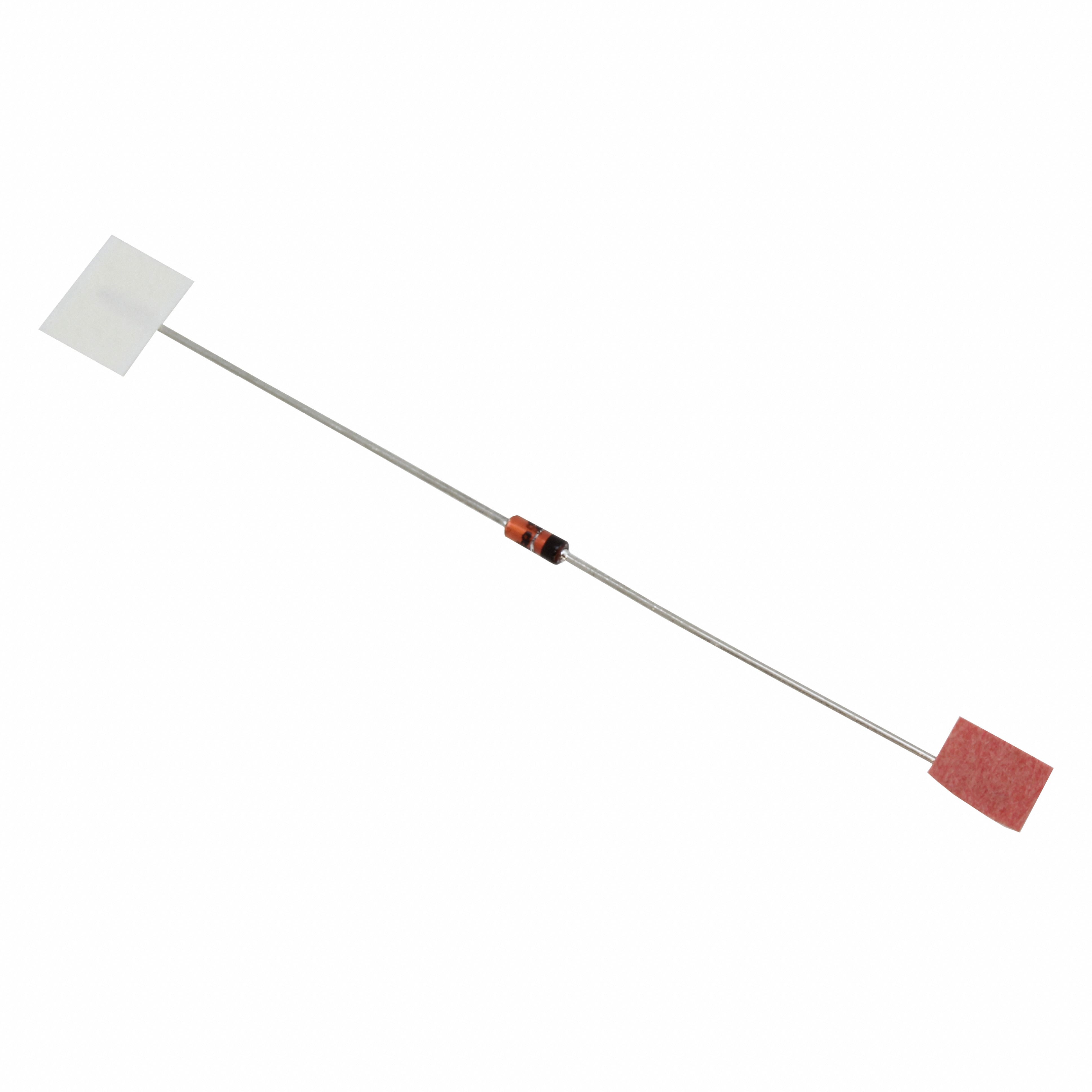

SD103B-TR The Vishay Dale SD103B-TR is a single Schottky diode with a 30V reverse voltage rating. It features a fast recovery time and is housed in a DO-35 axial package.
