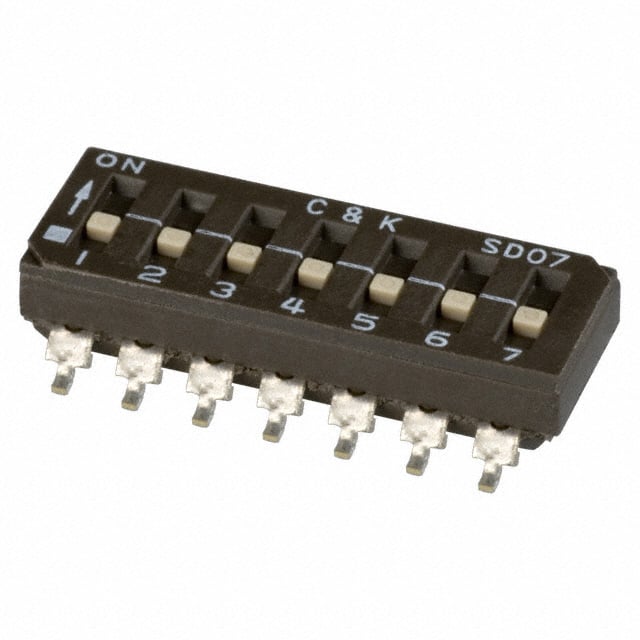

The C&K Components SD07H1SB is a low-profile DIP switch with a Single Pole Single Throw (SPST) configuration and 7 positions. It is designed for surface mount applications with gull wing termination style and a pitch of 2.54mm.
This switch is rated for 100mA at 25VDC and operates within a temperature range of -40°C to 85°C. It features a raised slide actuator and a tape seal for protection. The contact material is Beryllium Copper with a Gold finish.
Key specifications include a contact resistance below 50 milliohms, insulation resistance of 10^9 ohms, and dielectric strength of 500 V RMS. The mechanical and electrical life is rated for 2,000 make-and-break cycles.
Typical applications for this type of switch include address setting for industrial controls, logic switching for computers and peripherals, and function control in various electronic devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SD07H1SB is a Single Pole Single Throw (SPST) switch with 7 positions.
The contact rating is 100mA maximum carry rating at 50V DC, and the switch rating is from 0.1mA at 5V DC minimum to 100mA at 25V DC maximum.
The operating temperature range is -40°C to 85°C.
This switch is designed for surface mount applications and features gull wing termination.
Yes, the SD07H1SB is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1.
