| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating | |
| Washable |

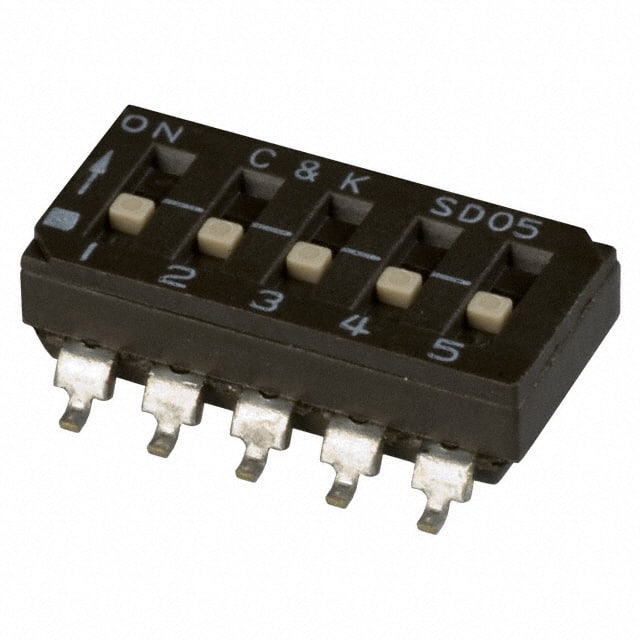

The C&K Components SD05H0SB is a low-profile DIP switch with a Single Pole Single Throw (SPST) configuration and 5 positions. It is designed for surface mount applications with gull wing termination style and a pitch of 2.54mm. The switch is rated for 100mA at 25VDC and has a contact resistance below 50 milliohms.
Constructed with Beryllium Copper contacts plated with gold and a PPA flame retardant case, this switch operates within a temperature range of -40°C to 85°C. It features a tape seal for protection and is washable. The actuator type is a standard slide with a flush level.
Typical applications include address switching for industrial controls, logic switching for computers and peripherals, and function control for various electronic devices. The surface mount design with tape and reel packaging availability makes it suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SD05H0SB features a Single Pole Single Throw (SPST) switch function with 5 positions.
The switch is rated for a maximum of 100mA at 25VDC, with a minimum switching rating of 0.1mA at 5VDC.
The operating temperature range for the SD05H0SB is -40°C to 85°C.
Yes, the SD05H0SB is RoHS3 Compliant.
