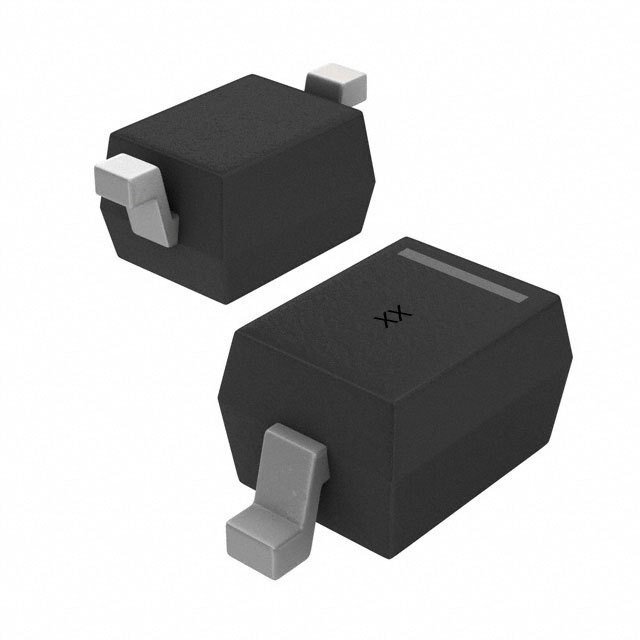

SD05C-TP The Micro Commercial Components SD05C-TP is a TVS Diode designed for general purpose applications. It offers 5V standoff voltage and 350W peak pulse power in a compact SOD-323 package.
Mfr Part #:

SD05C-TP

Available from 1 distributors
Mfr Name: Micro Commercial
Micro Commercial
The Micro Commercial Components SD05C-TP is a TVS Diode designed for general purpose applications. It offers 5V standoff voltage and 350W peak pulse power in a compact SOD-323 package.
✓ Total Stock: 3,000 pcs
$ Price Range: $0.99

SD05C-TP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request 1639+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SD05C-TP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Bidirectional Channels
Capacitance @ Frequency
Current
Halogen Free
Mounting Type
Operating Temperature
Power
Power Line Protection
SVHC Present
Storage Temperature
Supplier Device Package
Tape & Reel
Type
Voltage
View Similar Products (0)

SD05C-TP Description

Short technical summary and product information.

The Micro Commercial Components SD05C-TP is a TVS (Transient Voltage Suppressor) Diode designed for sensitive ESD protection. It features a working peak reverse voltage of 5V and a low clamping voltage of 13.5V at 24A (8/20µs).



This device protects one power or I/O port and has a peak pulse current rating of 30A (8/20µs) and a peak pulse power of 350W. The junction capacitance is 125pF at 1MHz, and the reverse leakage current is a maximum of 1µA at 5V.



Packaged in a surface-mount SOD-323 (SC-76) case, the SD05C-TP operates over a wide temperature range of -55°C to +150°C. It meets UL 94 V-0 flammability rating and is Halogen Free, making it a 'Green' device. The component is RoHS compliant.



Ideal for general purpose applications requiring robust ESD protection, the SD05C-TP is suitable for various electronic designs where transient voltage suppression is critical.

SD05C-TP Quick Information

Product Type: TVS Diode
Canonical Name: SD05C-TP ESD Protection Device
Subcategory: TVS - Diodes

SD05C-TP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Lead free / RoHS Compliant

SD05C-TP Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

SD05C-TP Features

  • Provides sensitive ESD protection.
  • Low clamping voltage at high peak currents.
  • Handles 30A peak pulse current (8/20µs).
  • Compact SOD-323 surface mount package.
  • Wide operating temperature range.

SD05C-TP Applications

  • Protects sensitive electronic components.
  • Ideal for I/O port transient suppression.
  • Suitable for general purpose applications.
  • Used in designs requiring ESD safety.

SD05C-TP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the standoff voltage of the SD05C-TP?

The working peak reverse voltage (standoff) is 5V.

What is the breakdown voltage range?

The breakdown voltage is between 6V and 8V at 1mA.

What is the clamping voltage?

The maximum clamping voltage is 13.5V at 24A (8/20μs) and 9.8V at 1A (8/20μs).

What is the peak pulse current rating?

The maximum peak pulse current is 30A (8/20μs) and 24A (8/20μs) from alternate test condition.

What package is the SD05C-TP available in?

It comes in a surface mount SOD-323 (SC-76) package.

What ESD protection does the SD05C-TP provide?

It provides ±8kV contact and ±15kV air discharge per IEC 61000-4-2.

What is the junction capacitance?

The typical junction capacitance is 125pF at 0V and 1MHz.
