Mfr Part #:

SD05C.TC

Available from 1 distributors

Mfr Name: Semtech

The Semtech SD05C.TC is a TVS Diode designed for circuit protection. It features RoHS3 compliance and an MSL of 1.

✓ Total Stock: 2,810 pcs

$ Price Range: $0.47

SD05C.TC Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
OTL Components ✓ Non-Authorised Inventory information	2,810 pcs On Request	2810 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SD05C.TC Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Semtech

View Similar Products (0)

SD05C.TC Description

Short technical summary and product information.

The Semtech SD05C.TC is a Transient Voltage Suppressor (TVS) diode, a type of electronic component designed to protect sensitive circuitry from voltage transients. This device is categorized under TVS Diodes within the broader Circuit Protection family.

Key specifications include RoHS3 compliance, indicating adherence to European Union directives on hazardous substances. It also has a Moisture Sensitivity Level (MSL) of 1, meaning it has unlimited shelf life under recommended storage conditions. The REACH status is noted as unaffected, suggesting it does not contain substances of very high concern regulated by the REACH framework.

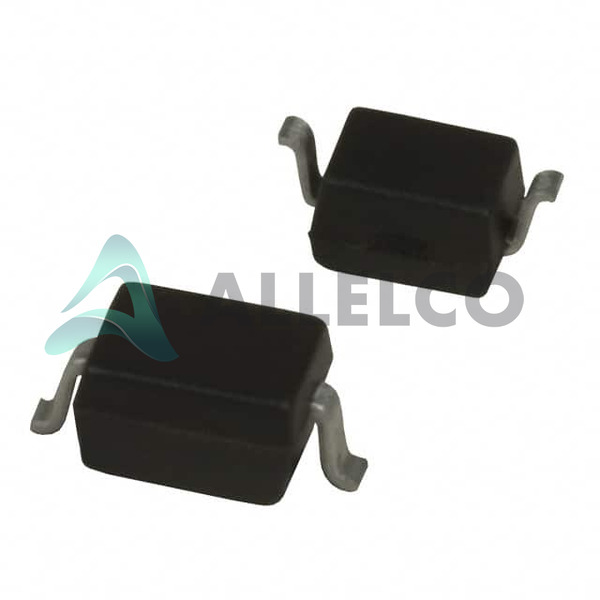

This TVS diode is typically housed in a SOD-323 package, suitable for surface-mount applications. Its primary function is to absorb transient voltage spikes, safeguarding downstream components from damage caused by electrostatic discharge (ESD), lightning, or other voltage surges. The specific electrical characteristics, such as breakdown voltage and clamping voltage, would be detailed in the product's datasheet.

Applications for the SD05C.TC include general-purpose voltage transient suppression in various electronic systems where protection against overvoltage events is critical. Its compact SOD-323 package makes it suitable for space-constrained designs.

SD05C.TC Quick Information

Product Type: TVS Diode

Series: SD05C

Canonical Name: SD05C.TC TVS Diode

Subcategory: TVS Diodes

SD05C.TC Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SD05C.TC Estimated Pricing

Qty	Low	High
1+	$0.47	$0.47

Estimated market price range - modelled values for guidance only, not live distributor offers.

SD05C.TC Features

TVS Diode for voltage transient suppression.
RoHS3 compliant for hazardous substance adherence.
Moisture Sensitivity Level 1 (Unlimited shelf life).
Compact SOD-323 surface-mount package.

SD05C.TC Applications

Protects sensitive electronic circuits.
Absorbs damaging voltage spikes.
Suitable for space-constrained designs.
General purpose overvoltage protection.

SD05C.TC FAQs

3 frequently asked questions generated from this part’s specifications.

What is the RoHS status of the Semtech SD05C.TC?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the SD05C.TC?

The Moisture Sensitivity Level is 1 Unlimited.

Is the Semtech SD05C.TC REACH unaffected?

Yes, the REACH status is REACH Unaffected.
