| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
112,200 pcs
|
112200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Material | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Operating Force | |
| Operating Temperature | |
| Pitch | |
| Storage Temperature | |
| Termination Style | |
| Voltage Rating | |
| Washable |

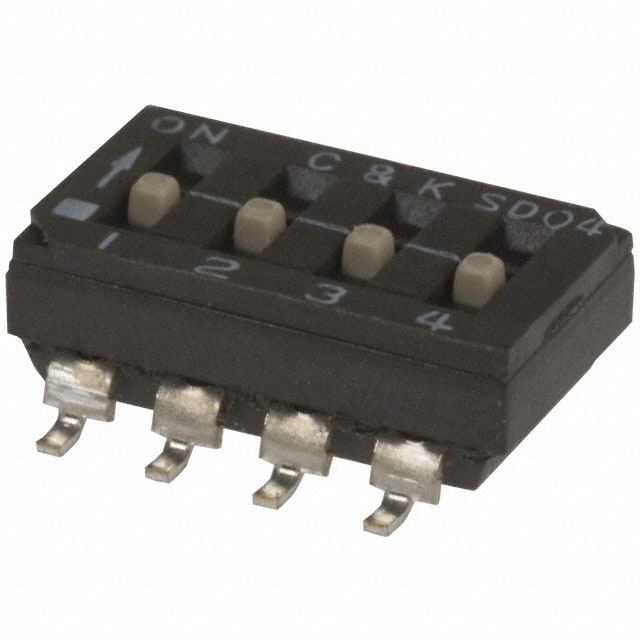

The C&K Components SD04H1SB is a low-profile DIP switch with a Slide (Standard) actuator type and a Raised actuator level. It offers 4 positions with a Single Pole Single Throw (SPST) configuration, suitable for various logic switching and address setting applications.
This switch is rated for 100mA at 25VDC and features gold-plated Beryllium Copper contacts for reliable performance. The contact resistance is typically below 50 milliohms. It operates within a temperature range of -40°C to 85°C and has a mechanical and electrical life of 2,000 make-and-break cycles.
The SD04H1SB is designed for surface mounting with gull wing termination. It has a pitch of 2.54mm and a height above the board of 0.180 inches (4.57mm). The case and cover are made of flame-retardant PPA, and the actuator is Nylon, also flame-retardant. It includes a tape seal for protection.
This RoHS3 compliant component is suitable for industrial controls, computers, and peripherals. Its sealed design and durable materials ensure reliable operation in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 0.1 mA to 100 mA at 5 V to 50 V DC.
The maximum voltage rating is 25 V DC during switching and 50 V DC for carry voltage.
The dielectric strength is 500 V RMS between adjacent terminals.
It has a life cycle of 2,000 make-and-break cycles at full load.
It uses surface mount with gull wing termination style.
