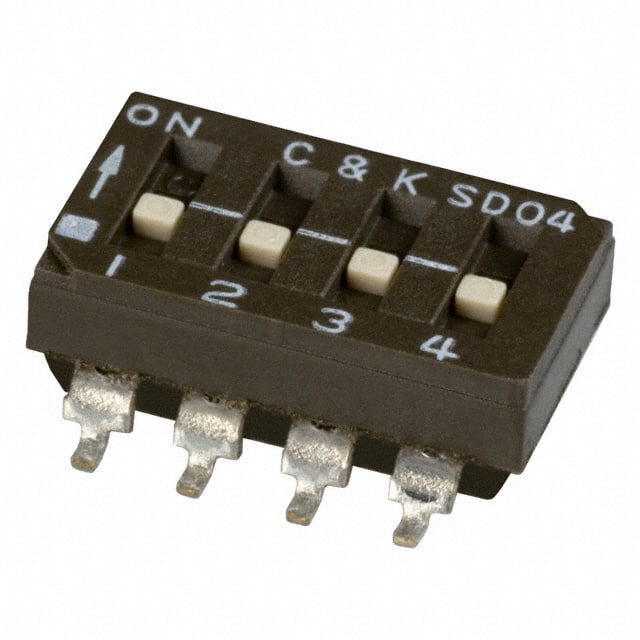

SD04H0SB The C&K Components SD04H0SB is a 4-position, Single Pole Single Throw (SPST) DIP switch designed for surface mounting. It features a 100mA @ 25VDC contact rating and Gull Wing termination.
Mfr Part #:

SD04H0SB

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components SD04H0SB is a 4-position, Single Pole Single Throw (SPST) DIP switch designed for surface mounting. It features a 100mA @ 25VDC contact rating and Gull Wing termination.
✓ Total Stock: 3 pcs
$ Price Range: $0.75

SD04H0SB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request 1730 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SD04H0SB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Contact Resistance
Current Rating (Amps)
Features
Height Above Board
Insulation Resistance
Mounting Type
Number of Positions
Operating Force
Operating Temperature
Pitch
Storage Temperature
Termination Style
Voltage Rating
View Similar Products (0)

SD04H0SB Description

Short technical summary and product information.

The C&K Components SD04H0SB is a low-profile DIP switch with 4 positions and an SPST circuit configuration. It is designed for surface mount applications and features a Gull Wing termination style. The switch is rated for 100mA at 25VDC and has a contact resistance below 50 milliohms.



Constructed with a PPA flame retardant case and cover, and Nylon flame retardant actuator, this switch offers durability. The contacts are made of Beryllium Copper with gold plating, and the terminals are bright tin-plated brass. It operates within a temperature range of -40°C to 85°C and has a mechanical and electrical life of 2,000 make-and-break cycles.



This switch is suitable for applications such as address switching for industrial controls, logic switching for computers and peripherals, and function control in various electronic devices. It features a tape seal for protection and is RoHS3 compliant.

SD04H0SB Quick Information

Product Type: DIP Switch
Series: SD Series
Canonical Name: C&K Components SD04H0SB SPST DIP Switch
Subcategory: DIP Switch

SD04H0SB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SD04H0SB Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

SD04H0SB Features

  • 4-position SPST DIP switch.
  • Rated for 100mA at 25VDC.
  • Surface mount with Gull Wing termination.
  • Gold-plated Beryllium Copper contacts.
  • Operates from -40°C to 85°C.

SD04H0SB Applications

  • Used for industrial control address switching.
  • Suitable for computer logic switching.
  • Applies to peripheral device function control.
  • Ideal for general electronic function control.

SD04H0SB FAQs

5 frequently asked questions generated from this part’s specifications.
What is the switch function of the SD04H0SB?

The switch function is SPST (Single Pole Single Throw).

How many positions does the SD04H0SB DIP switch have?

The SD04H0SB has 4 positions.

What is the contact rating for the SD04H0SB?

The contact rating is 100mA at 25VDC.

What is the operating temperature range for this DIP switch?

The operating temperature range is -40°C to 85°C.

Is the SD04H0SB RoHS compliant?

Yes, the SD04H0SB is RoHS3 Compliant.
