SD02H0SB The C&K Components SD02H0SB is a 2-position SPST DIP switch designed for surface mount applications. It features a tape seal and Gull Wing termination.
Mfr Part #:

SD02H0SB

Available from 2 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components SD02H0SB is a 2-position SPST DIP switch designed for surface mount applications. It features a tape seal and Gull Wing termination.
✓ Total Stock: 945 pcs
$ Price Range: $0.75

SD02H0SB Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
935 pcs
On Request
935 pcs On Request 1 On Request On Request N/A On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request 845 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SD02H0SB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Material
Actuator Type
Circuit
Contact Finish
Contact Material
Contact Resistance
Current Rating (Amps)
Features
Height Above Board
Insulation Resistance
Mounting Type
Number of Positions
Operating Temperature
Pitch
Storage Temperature
Termination Style
Voltage Rating
Washable
View Similar Products (0)

SD02H0SB Description

Short technical summary and product information.

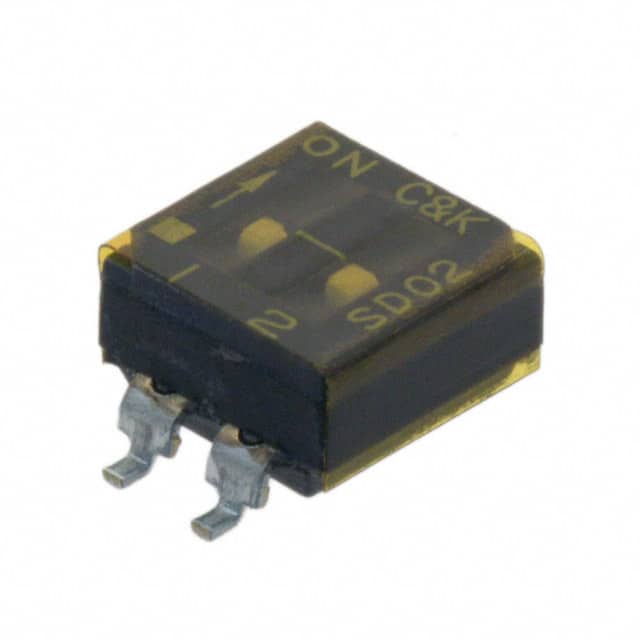

This C&K Components SD02H0SB is a low-profile DIP switch with a Single Pole Single Throw (SPST) configuration and 2 positions. It is designed for surface mount applications with Gull Wing termination style and a pitch of 2.54mm.



The switch has a contact rating of 100mA at 25VDC and a contact finish of gold, with Beryllium Copper as the contact material. The operating temperature range is -40°C to 85°C. The actuator type is a slide with a flush or recessed level.



Materials include a PPA flame retardant case and cover, and a Nylon flame retardant actuator. The terminals are insert molded and feature a tape seal made of Polyimide. This switch is RoHS3 compliant and has an MSL rating of 1.



Typical applications include address switching for industrial controls, logic switching for computers and peripherals, and function control for various electronic devices. Its low profile design saves space on the PCB.

SD02H0SB Quick Information

Product Type: DIP Switch
Series: SD Series
Canonical Name: C&K Components SD02H0SB SPST DIP Switch
Subcategory: DIP Switch

SD02H0SB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SD02H0SB Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

SD02H0SB Features

  • 2-position SPST DIP switch.
  • Rated for 100mA at 25VDC.
  • Surface mount with Gull Wing termination.
  • Features a protective tape seal.
  • RoHS3 compliant and MSL 1.

SD02H0SB Applications

  • Used for industrial control address switching.
  • Suitable for computer logic switching.
  • Applicable for peripheral function control.
  • Ideal for space-saving PCB designs.

SD02H0SB FAQs

5 frequently asked questions generated from this part’s specifications.
What is the switch function and number of positions for the SD02H0SB?

The SD02H0SB is a 2-position SPST (Single Pole Single Throw) DIP switch.

What is the contact rating of the C&K Components SD02H0SB DIP switch?

The switch has a contact rating of 100mA at 25VDC.

What is the operating temperature range for this DIP switch?

The operating temperature range is -40°C to 85°C.

What type of mounting and termination does the SD02H0SB use?

This DIP switch is designed for surface mounting and features Gull Wing termination.

Is the SD02H0SB RoHS compliant?

Yes, the SD02H0SB is RoHS3 Compliant.
