| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
191 pcs
|
191 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Detection | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Cover Material | |
| Current Rating | |
| Features | |
| Flammability Rating | |
| Height Above Board | |
| Insertion, Removal Method | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Operating Voltage | |
| Process Rating (Soldering) | |
| SVHC Present | |
| Spring Material | |
| Storage Temperature | |
| Storage Temperature Range | |
| Tape & Reel | |
| Termination Style | |
| Withstanding Voltage | |
| Write Protect | |
| cycle_life |

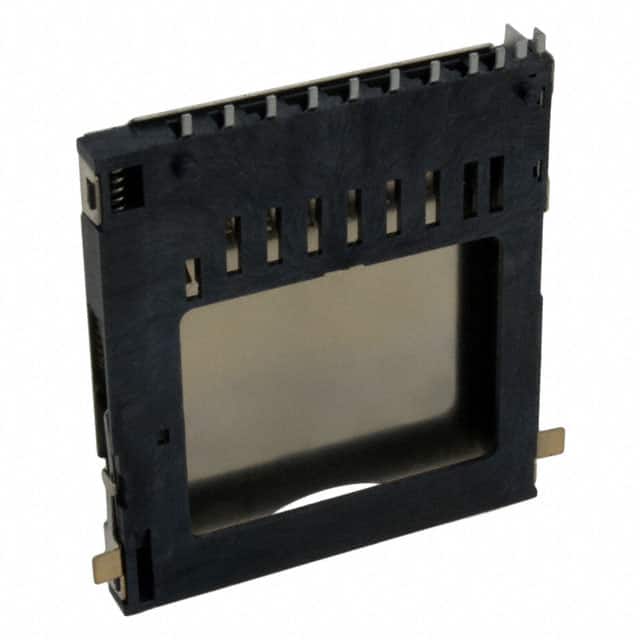

The 3M SD-RSMT-2-MQ-WF is a Secure Digital (SD) card connector from the SD Series, designed for surface mount, right angle mounting. It integrates both the connector and ejector in a push-push mechanism, allowing for easy card insertion and removal. The connector includes a board guide and a write protect switch for enhanced functionality.
Key electrical specifications include a current rating of 0.5 A, an operating voltage of 3.6 V AC, and a minimum insulation resistance of 1000 MΩ. The connector is rated for 10,000 insertion/removal cycles and operates over a temperature range of -25°C to +85°C. The contact finish is gold with a thickness of 0.25 µm over a nickel underplating.
The connector is housed in a high-temperature thermoplastic insulator with a UL 94V-0 flammability rating. The cover is made of stainless steel, and the contacts and springs are copper alloy. The soldering process rating allows for a maximum temperature of 250°C with 40 seconds over 230°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.83 | $3.83 |
| 300+ | $2.90 | $2.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector accepts Secure Digital (SD) cards.
It is a surface mount, right angle connector.
The current rating is 0.5 A.
The operating temperature range is -25°C to +85°C.
Yes, it includes a write protect switch.
The contact finish is gold with a thickness of 0.25 µm.
The housing has a UL 94V-0 flammability rating.
