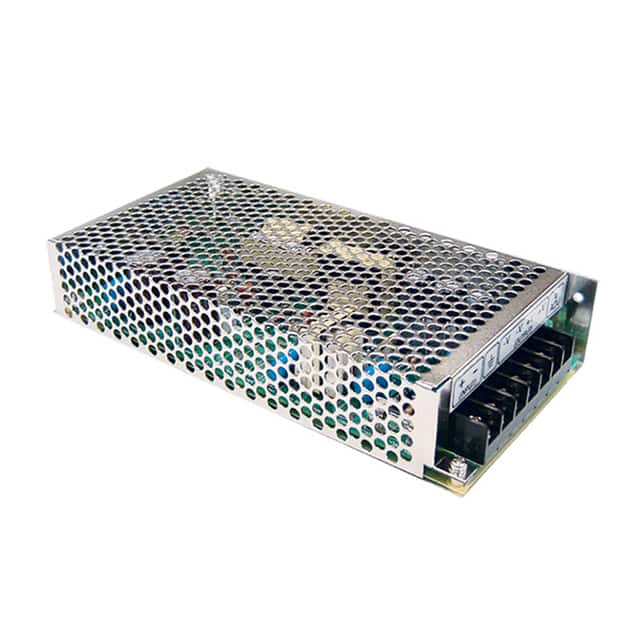

This Mean Well USA SD-100A-12 is an enclosed DC/DC converter designed for ITE (Commercial) applications. It provides a power output of 102W and a current rating of 8.5A, with a single output.
The converter operates with an efficiency of 82% and offers 1.5kV of isolation voltage. Its operating temperature range is -15°C to 60°C, with derating applied. The unit is designed for chassis mounting.
Key dimensions for this converter are 199.0mm in length, 98.0mm in width, and 38.0mm in height. It is compliant with CE standards and meets RoHS3 compliance requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Mean Well USA SD-100A-12 has a power output of 102W.
The output current for the SD-100A-12 is 8.5A.
The isolation voltage of the SD-100A-12 converter is 1.5 kV.
The operating temperature range for this DC/DC converter is -15°C to 60°C (With Derating).
The Mean Well USA SD-100A-12 is designed for chassis mounting.
The dimensions of the SD-100A-12 are 199.0mm in length, 98.0mm in width, and 38.0mm in height.
