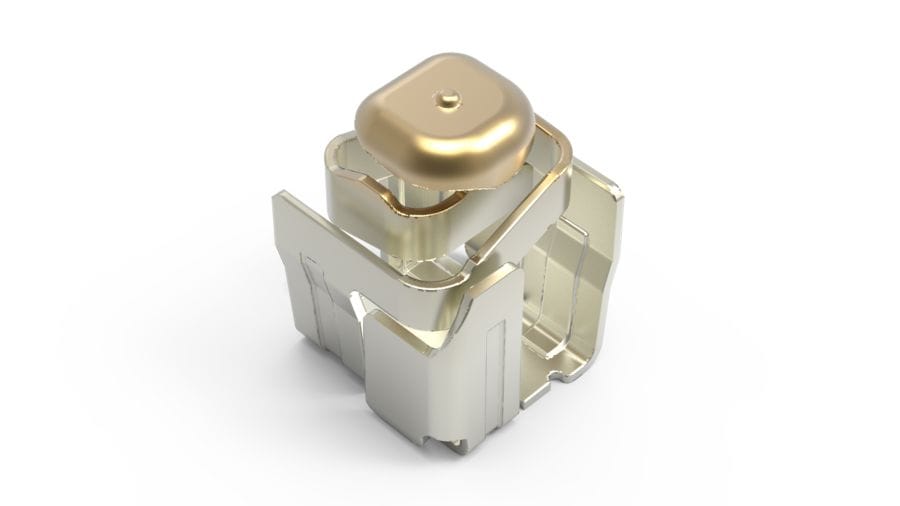

SCTA5A0101 The Alps Alpine SCTA5A0101 is a surface mount spring contact connector designed for signal, ground, and antenna connections. It offers a 3A rating and operates within a -40 to 85°C temperature range.
Mfr Part #:

SCTA5A0101

Available from 1 distributors
Mfr Name: Alps Alpine
Alps Alpine
The Alps Alpine SCTA5A0101 is a surface mount spring contact connector designed for signal, ground, and antenna connections. It offers a 3A rating and operates within a -40 to 85°C temperature range.
✓ Total Stock: 347 pcs
$ Price Range: $1.32

SCTA5A0101 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
347 pcs
On Request
347 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SCTA5A0101 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dimensions
Mounting Type
Operating Temperature Range
Rated Current
SVHC Present
View Similar Products (0)

SCTA5A0101 Description

Short technical summary and product information.

The Alps Alpine SCTA5A0101 is a spring contact connector from the SCTA_A Series, designed for reliable electrical connections. It features a compact 1.4x1.4mm footprint and a surface mount type, making it suitable for automated assembly processes.



This connector is rated for 3A and operates within a temperature range of -40°C to 85°C. Its dimensions include a product height of 2.0mm and a height in use ranging from 1.4mm to 1.8mm, allowing for flexible integration into various designs.



Applications for the SCTA5A0101 include mobile devices such as smartphones, tablets, headsets, and wearables, as well as notebooks and peripherals. It is also utilized in gaming home handheld consoles and healthcare equipment, highlighting its versatility for signal, ground, and antenna connections.

SCTA5A0101 Quick Information

Product Type: Spring Contact Connector
Series: SCTA_A Series
Canonical Name: Alps Alpine SCTA_A Series Spring Contact Connector
Subcategory: Spring Contact

SCTA5A0101 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SCTA5A0101 Estimated Pricing

Qty Low High
1+ $1.32 $1.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

SCTA5A0101 Features

  • Surface mount spring contact connector.
  • Rated for 3A current.
  • Operates from -40 to 85°C.
  • Compact 1.4x1.4mm dimensions.
  • Suitable for signal, ground, and antenna.

SCTA5A0101 Applications

  • Ideal for mobile smartphones and tablets.
  • Used in wearable devices and headsets.
  • Applicable for notebooks and peripherals.
  • Suitable for home handheld consoles.
  • Designed for healthcare equipment.

SCTA5A0101 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the rated current for the SCTA5A0101 connector?

The SCTA5A0101 connector is rated for 3A.

What is the operating temperature range of the SCTA5A0101 connector?

The operating temperature range for the SCTA5A0101 connector is -40 to 85°C.

What are the dimensions of the SCTA5A0101 connector?

The SCTA5A0101 connector has dimensions of 1.4x1.4mm (WxD) and a product height of 2.0mm.

What is the mounting type of the SCTA5A0101 connector?

The SCTA5A0101 connector is a surface mount type.

How is the SCTA5A0101 connector packaged?

The SCTA5A0101 connector is packaged in tape and reel with a minimum order unit of 10,000 pieces.
