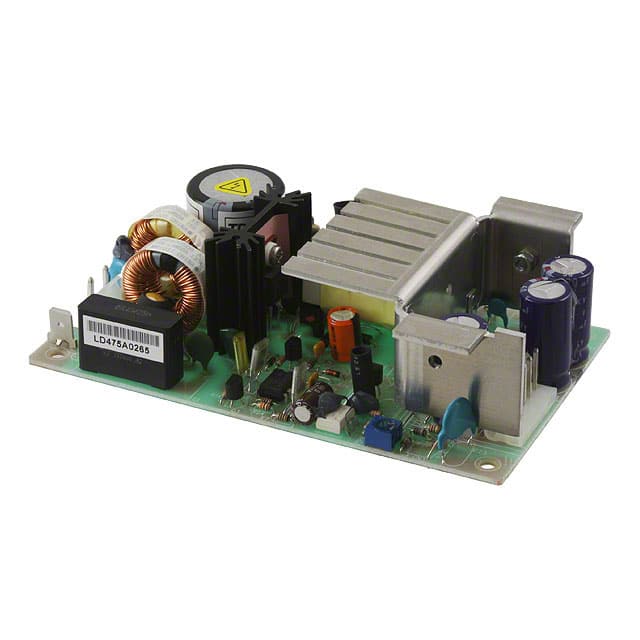

The TDK Corporation SCT68 is a versatile 60W AC/DC power supply designed with an open frame construction for easy integration. It features a universal input voltage range of 85-265 VAC and a frequency of 47-63 Hz, making it suitable for global applications.
This converter provides three outputs: 5V, 15V, and 12V, with maximum currents of 7A, 3A, and 920mA respectively. It offers a typical efficiency of 70% at full load and nominal AC line. The operating temperature range is from 0°C to 70°C, with derating applied from 50°C to 70°C.
Key electrical specifications include line and load regulation of ±2% for the primary output and ±5% for secondary outputs. It also features overcurrent protection with automatic recovery and overvoltage protection on the main output. The dimensions are 5.00" L x 3.00" W x 1.34" H (127.0mm x 76.2mm x 34.0mm).
The SCT68 meets global safety agency approvals including CE marking, UL60950-1, CSA60950-1, and IEC/EN60950-1. It is designed for ITE (Commercial) applications and offers features like adjustable output and universal input. The unit comes with a 1-year warranty.
The SCT68 provides 60W of output power under convection cooling.
The SCT68 accepts an input voltage range of 85-265 VAC and a frequency range of 47-63 Hz.
The SCT68 offers three output voltages: 5V, 15V, and 12V.
The maximum currents are 7A for the 5V output, 3A for the 15V output, and 920mA for the 12V output.
The SCT68 operates within a temperature range of 0°C to 70°C.
The dimensions of the SCT68 are 5.00" L x 3.00" W x 1.34" H (127.0mm x 76.2mm x 34.0mm).
Yes, the SCT68 is RoHS3 Compliant.
