| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage | |
| Voltage - DC Reverse (Vr) (Max) |
The SCS215AJTLL is a silicon carbide (SiC) Schottky diode manufactured by ROHM Semiconductor. It is rated for a maximum reverse voltage of 650V and an average rectified current of 15A. The typical forward voltage is 1.55V at 15A. The diode exhibits zero reverse recovery time (0 ns), enabling high-frequency switching with minimal losses. The junction capacitance is 550 pF at 1V and 1 MHz. The maximum junction operating temperature is 175°C.

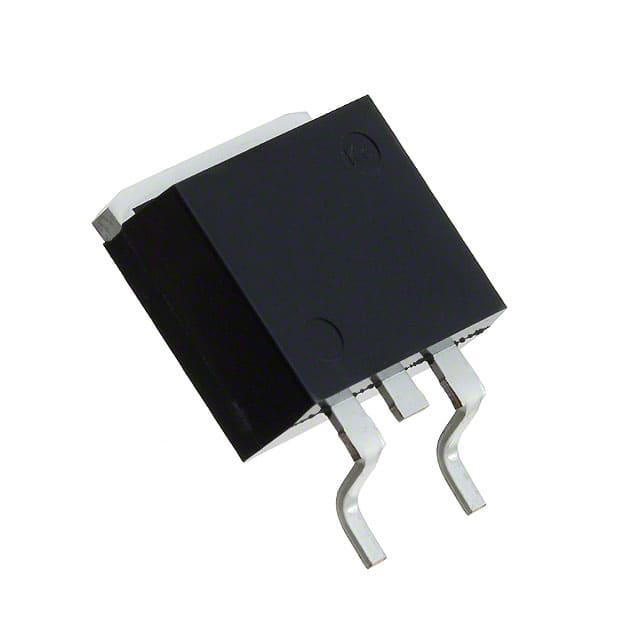

The device is housed in a TO-263-3 (D²Pak) surface mount package with the supplier device package designation TO-263AB. It is designed for surface mount assembly and is suitable for applications requiring high efficiency and high temperature operation. The SiC technology provides low switching losses and high reliability in power conversion circuits.
The SCS215AJTLL is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited). These compliance claims are based on precomputed data with low confidence and should be verified with the manufacturer.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.48 | $8.48 |
| 10+ | $5.77 | $5.77 |
| 100+ | $4.23 | $4.23 |
| 500+ | $4.10 | $4.10 |
| 1,000+ | $3.85 | $3.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
650 V.
15 A.
1.55 V typical at 15 A.
0 ns (zero recovery time).
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB (surface mount).
550 pF at 1 V, 1 MHz.
175°C.
