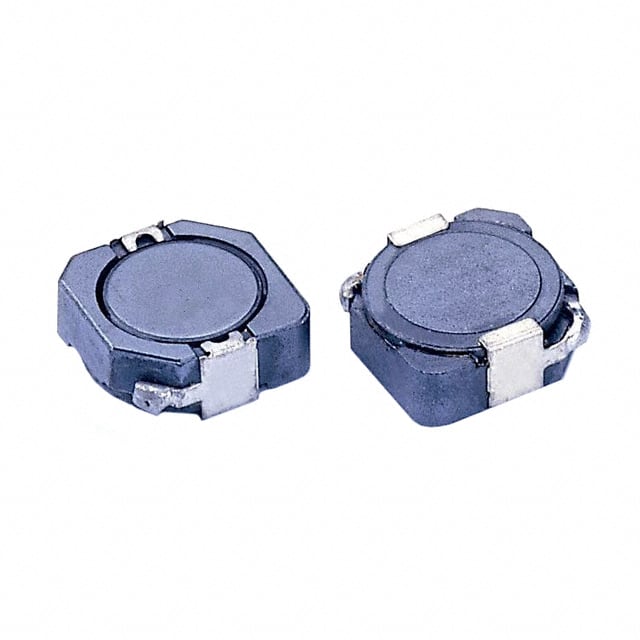

The Signal Transformer SCRH104R-151 is a fixed inductor designed for surface mount applications. It offers a nominal inductance of 150 µH with a tolerance of ±30% and a maximum DC resistance of 506 mOhm.
This magnetically shielded inductor is engineered for high efficiency and excellent power density. It has a current rating of 930mA and can operate within a temperature range of -40°C to 125°C. The component measures 10.50mm in length, 10.30mm in width, and 4.00mm in height.
Key electrical characteristics include a saturation current of 0.92A and a temperature current of 0.70A, ensuring reliable performance under various load conditions. The inductor is suitable for power applications requiring compact and efficient magnetic components.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the SCRH104R-151 is 150 µH.
The tolerance for the SCRH104R-151 inductor is ±30%.
The maximum DC resistance (DCR) of the SCRH104R-151 is 506mOhm.
The saturation current for the SCRH104R-151 is 0.92A.
The temperature current rating of the SCRH104R-151 is 0.70A.
The current rating of the SCRH104R-151 is 930mA.
The SCRH104R-151 has dimensions of 10.50mm in length, 10.30mm in width, and 4.00mm in height.
